FHP-20-01-T-S footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

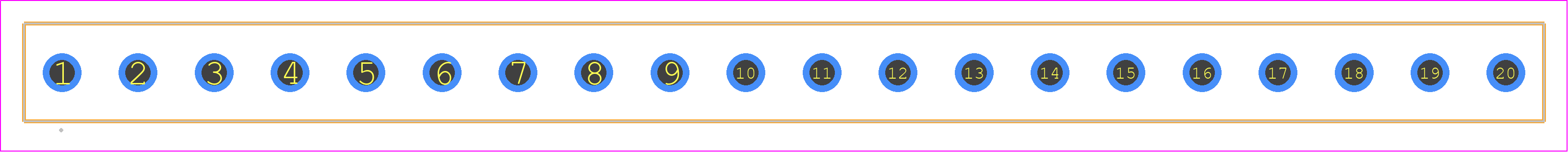

FHP-20-01-T-S - SAMTEC PCB footprint - Other - Other - FHP-20-01-X-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FHP-20-01-T-S
Part Number FHP-20-01-T-S
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - FHP-20-01-X-S
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FHP-20-01-T-S Details

Manufacturer Part Number:
FHP-20-01-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
7
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
20

FHP-20-01-T-S Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
Yes, the FHP-20-01-T-S connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable performance.
The FHP-20-01-T-S connector is rated for operation in temperatures ranging from -55°C to +125°C (-65°F to +257°F).
Yes, the FHP-20-01-T-S connector is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
Samtec provides recommended PCB layout and footprint guidelines in their documentation and online resources. It's essential to follow these guidelines to ensure proper mating and reliable performance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FHP-20-01-T-S Overview

Use the download button to access the FHP-20-01-T-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FHP-2, or try a keyword search, such as Power Connectors
