FHP-21-02-T-S footprint, schematic symbol and 3D model by SAMTEC

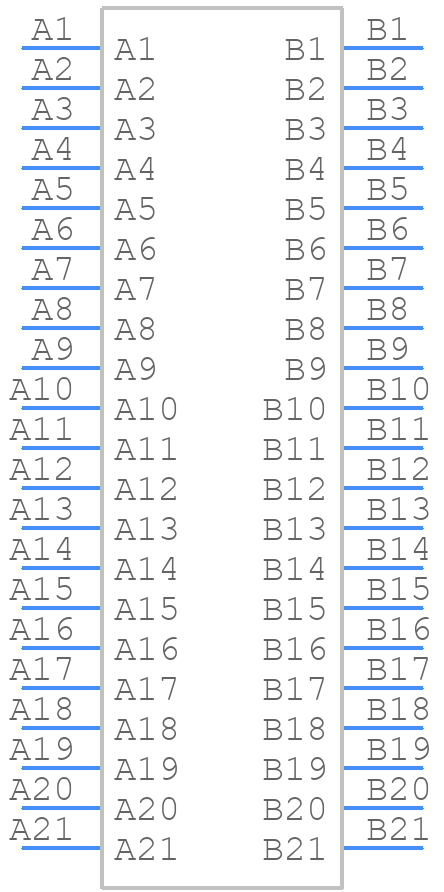

Symbol

click to zoom

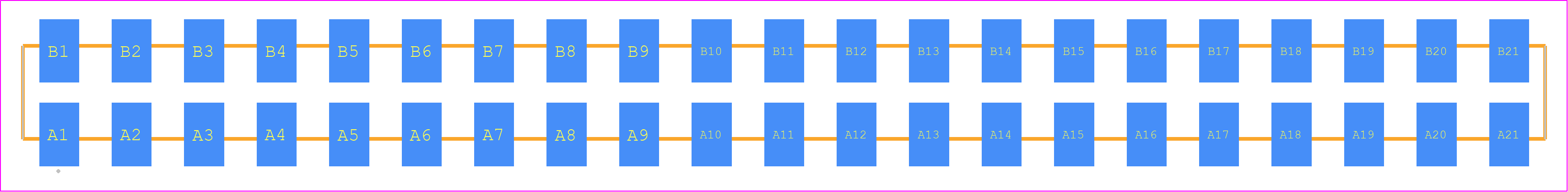

PCB Footprints

FHP-21-02-T-S - SAMTEC PCB footprint - Other - Other - FHP-21-02-XX-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FHP-21-02-T-S
Part Number FHP-21-02-T-S
Manufacturer SAMTEC
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - FHP-21-02-XX-S
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FHP-21-02-T-S Details

Manufacturer Part Number:
FHP-21-02-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
TIN
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
21

FHP-21-02-T-S Frequently Asked Questions (FAQs)

The recommended torque for the screws on the FHP-21-02-T-S connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the FHP-21-02-T-S connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The maximum operating temperature for the FHP-21-02-T-S connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
The FHP-21-02-T-S connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for applications that require resistance to moisture or water.
The recommended mating cycle for the FHP-21-02-T-S connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FHP-21-02-T-S Overview

Use the download button to access the FHP-21-02-T-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FHP-2, or try a keyword search, such as Power Connectors
