The recommended mating sequence is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the FHP-22-01-TM-S is designed to meet the requirements of high-vibration applications. However, it's recommended to follow the recommended torque values and ensure proper mounting to prevent connector damage.
The maximum operating temperature for the FHP-22-01-TM-S is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
The FHP-22-01-TM-S has a sealed design, which provides some level of protection against humidity and chemicals. However, it's recommended to consult with Samtec's application engineers to determine the suitability of this connector for your specific environment.
Samtec recommends using a soft, dry brush to remove any debris or contaminants. Avoid using harsh chemicals, abrasive cleaners, or ultrasonic cleaning methods, as they can damage the connector's contacts or housing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FHP-22-01-TM-S Overview

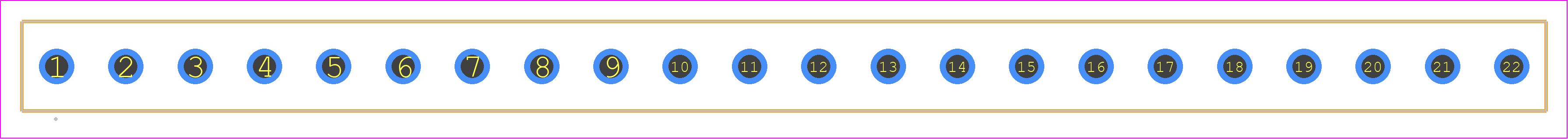

Use the download button to access the FHP-22-01-TM-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FHP-2,
or try a keyword search, such as Headers and Edge Type Connectors
