Part Image

FI-B03D - Mornsun Power

Description:  Compact size  Restrain line disturb of DC power source  The attenuation coefficient of frequency meet 20dB  Cost-effective  Low Temperature Rise

Download FI-B03D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FI-B03D - Mornsun Power - PCB symbol
click to zoom
PCB Footprints

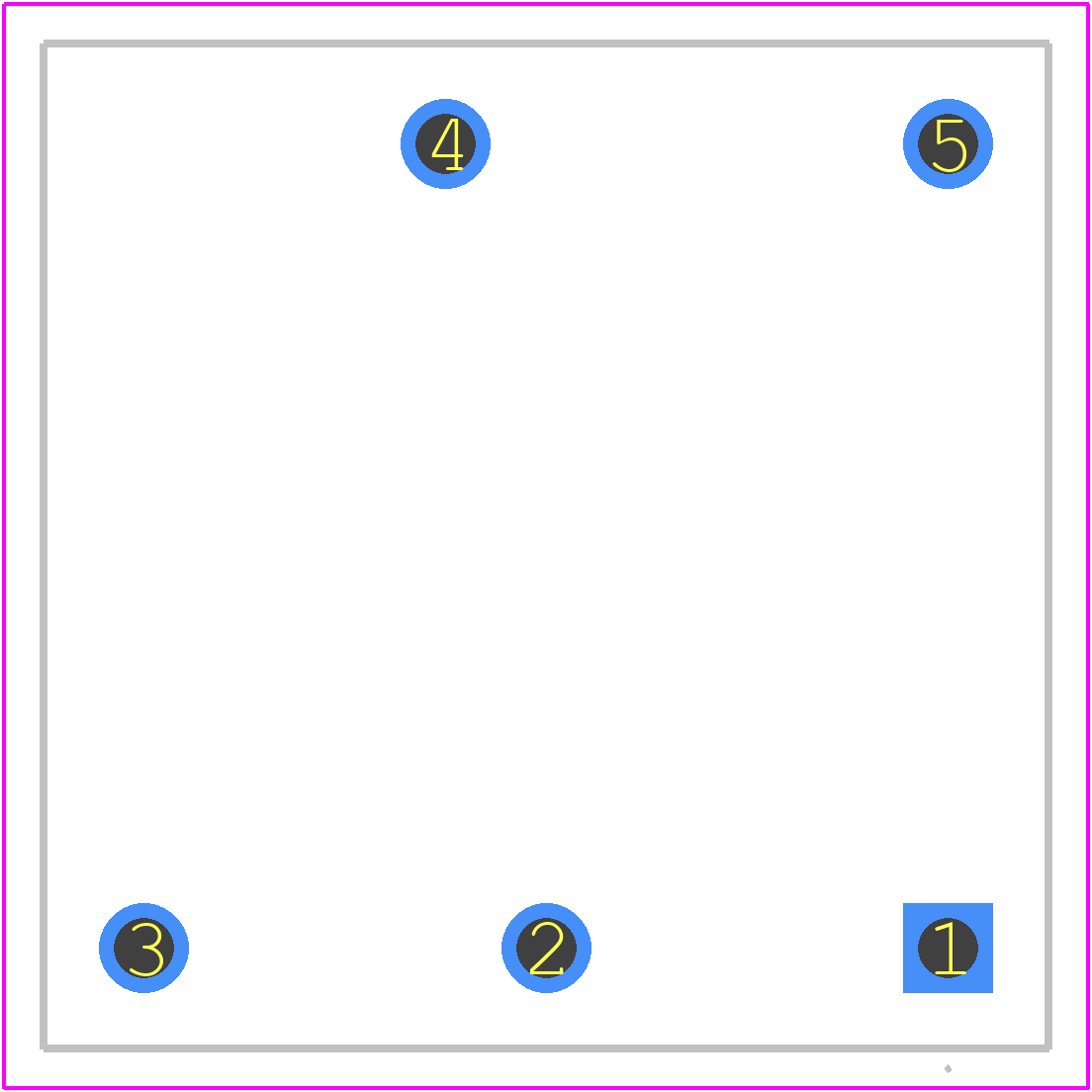

FI-B03D - Mornsun Power PCB footprint - Other - Other - FI-B03D-3
click to zoom
3D Models
FI-B03D - Mornsun Power - 3D model - Other - FI-B03D-3
click to zoom

FI-B03D Details

  • Manufacturer Part Number:

    FI-B03D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    MORNSUN

  • YTEOL:

    5.94

  • Approvals:

    EN

  • DC Resistance-Max:

    0.03 Ω

  • Filter Type:

    DATA LINE FILTER MODULE

  • Height:

    11.7 mm

  • Length:

    25.4 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Current:

    3 A

  • Rated Voltage:

    80 V

  • Width:

    25.4 mm

FI-B03D Frequently Asked Questions (FAQs)

  • MORNSUN recommends a PCB layout with a large copper area connected to the GND pin to dissipate heat. A minimum of 1 square inch of copper is recommended.
  • Yes, the FI-B03D is designed to withstand vibrations up to 10G peak acceleration. However, it's recommended to follow proper mounting and soldering techniques to ensure reliability.
  • To ensure stable output voltage, make sure to decouple the input and output with capacitors (e.g., 10uF ceramic capacitors) and keep the output voltage within the specified range (3.3V ± 5%).
  • The FI-B03D is rated for operation up to 85°C ambient temperature. However, derating may be necessary for high-power applications or extreme environmental conditions.
  • Yes, the FI-B03D can be used in redundant or parallel configurations. However, it's essential to follow proper design and layout guidelines to ensure reliable operation and minimize electromagnetic interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FI-B03D Overview

Use the download button to access the FI-B03D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FI-B0, or try a keyword search, such as Data Line Filters
