Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the input voltage. Additionally, a minimum input capacitance of 10uF is recommended to filter out noise and ensure stable operation.
The maximum allowed input voltage ripple for the FIAM2C21 is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
While the FIAM2C21 is rated for operation up to 100°C, Vicor recommends derating the output power by 1% per degree above 80°C to ensure reliable operation. Additionally, the module's thermal management should be designed to keep the junction temperature below 125°C.
To troubleshoot common issues, Vicor recommends checking the input voltage, output load, and PCB layout for any anomalies. Additionally, using an oscilloscope to monitor the output voltage and current can help identify the root cause of the issue. Vicor's application notes and technical support resources can also provide guidance on troubleshooting and resolving common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FIAM2C21 Overview

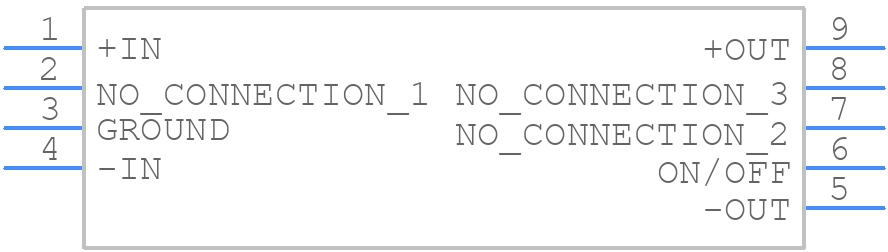

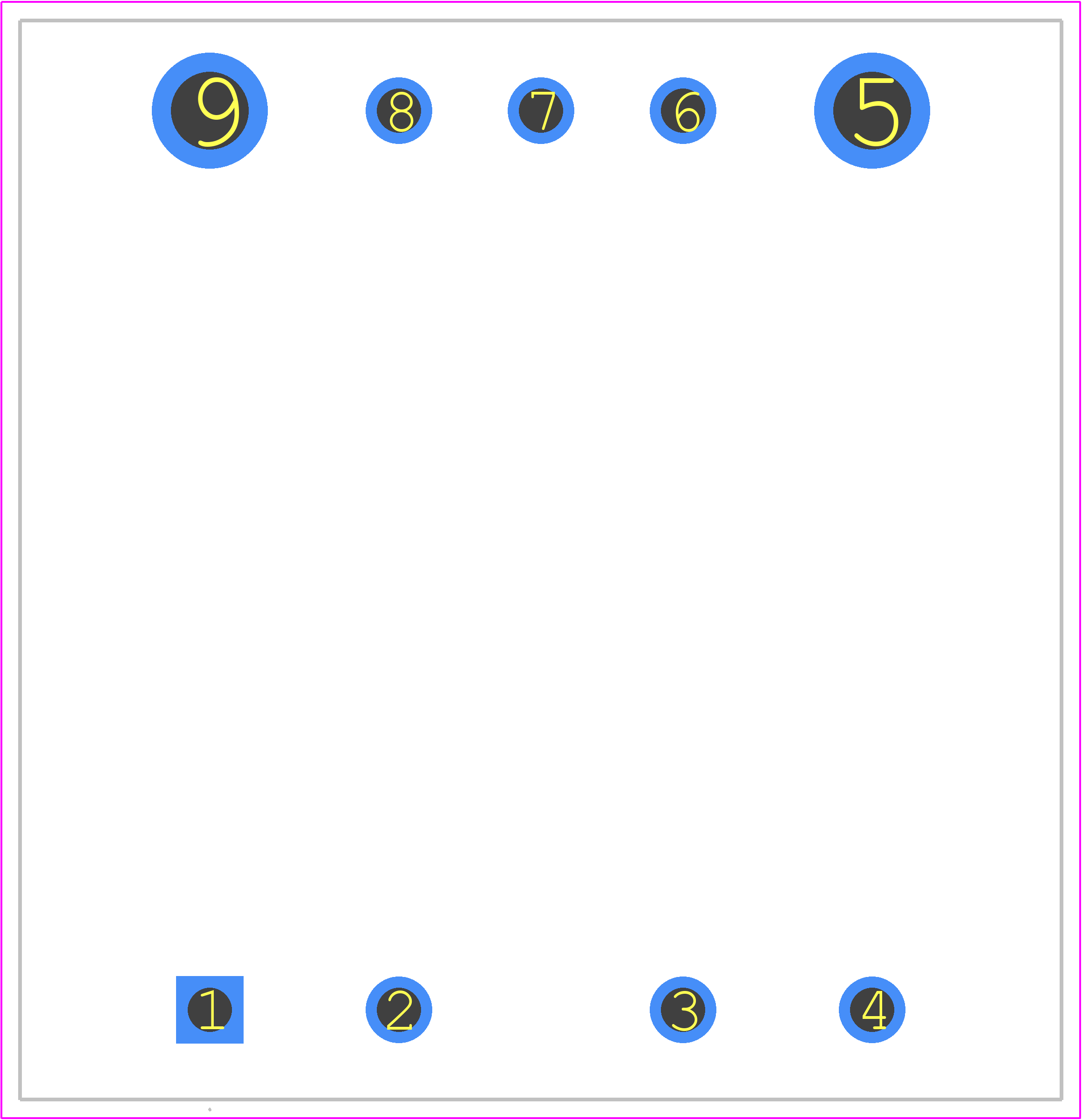

Use the download button to access the FIAM2C21 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FIAM2,
or try a keyword search, such as Other Signal Circuits
