FIN1022MTCX - onsemi

Description: Obsolete - 3.3V LVDS 2-Bit High Speed Differential Driver

Download FIN1022MTCX Model

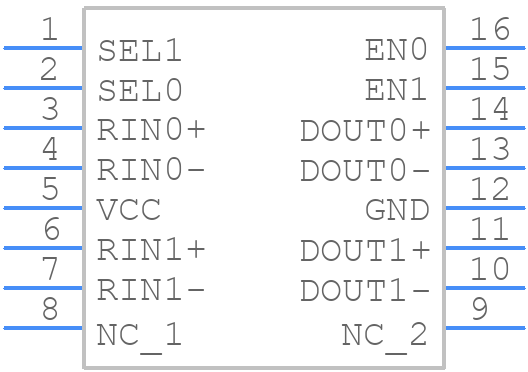

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FIN1022MTCX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead TSSOP MO-153
click to zoom
3D Models
FIN1022MTCX - onsemi  - 3D model - Small Outline Packages - 16-Lead TSSOP MO-153
click to zoom

FIN1022MTCX Details

  • Manufacturer Part Number:

    FIN1022MTCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-16

  • Package Description:

    TSSOP-16

  • Manufacturer Package Code:

    948AH

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • Input Voltage-Max:

    3.6 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On-state Resistance-Max (Ron):

    75 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    35 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    3.5 ns

  • Switch-on Time-Max:

    3.5 ns

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

FIN1022MTCX Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and use a thermal interface material (TIM) with a high thermal conductivity. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and implement thermal protection mechanisms if necessary.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • To handle ESD protection for the FIN1022MTCX, it's recommended to follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits or devices in the system design. Additionally, consider using a TVS (Transient Voltage Suppressor) or other ESD protection devices to protect the device from electrostatic discharge.
  • When paralleling multiple FIN1022MTCX devices, it's essential to ensure that each device has its own separate heat sink, and that the devices are properly matched in terms of electrical characteristics. Additionally, consider the impact of paralleling on the overall system design, including the effects on current sharing, thermal management, and system reliability.
