A good PCB layout is crucial for the FIN1047M. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common mode choke to reduce EMI. Refer to onsemi's application note AND9233/D for a recommended layout.
Choose an input capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF to 22uF ceramic capacitor with an X7R or X5R dielectric is recommended. Ensure the capacitor is rated for the input voltage and can handle the maximum RMS current.
The FIN1047M can deliver up to 1A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. Refer to the datasheet's thermal derating curves to determine the maximum output current for your specific application.
To ensure stability, follow the datasheet's guidelines for output capacitor selection and placement. Use a low-ESR output capacitor (e.g., ceramic or polymer) with a value between 10uF to 47uF. Additionally, ensure the output voltage is within the recommended range and the input voltage is stable.
The FIN1047M is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure proper thermal management, such as heat sinking and airflow, to keep the junction temperature below 125°C. Consult onsemi's application notes for high-temperature design considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FIN1047M Overview

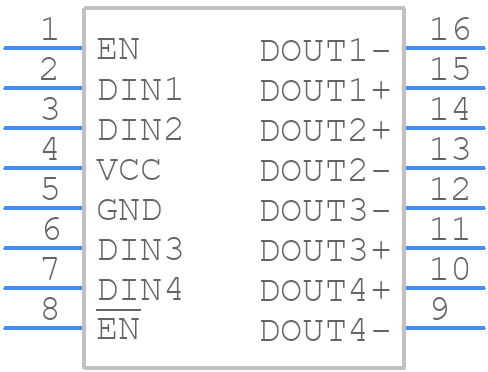

Use the download button to access the FIN1047M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FIN10,
or try a keyword search, such as Line Driver or Receivers
