Part Image

FIN1101K8X - onsemi

Description: Ultra low power consumption; Open circuit fail safe protection; 3.5 ps max random jitter and 135 ps max deterministic jitter; Packaged in 8-pin SOIC and US8; Up to 1.6 Gb/s full differential path; Meets or exceed the TA/EIA-644-A LVDS standard; Power off protection; LVDS receiver inputs accept LVPECL, HSTL, and SSTL-2 directly; 7 kV HBM ESD protection (all pins); Wide rail-to-rail common mode range; 3.3V power supply operation

Download FIN1101K8X Model

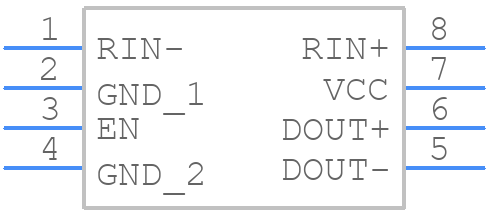

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FIN1101K8X - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - US8 (MO-187)
click to zoom
3D Models
FIN1101K8X - onsemi  - 3D model - Small Outline Packages - US8 (MO-187)
click to zoom

FIN1101K8X Details

  • Manufacturer Part Number:

    FIN1101K8X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    US8

  • Package Description:

    VSSOP-8

  • Manufacturer Package Code:

    846AN

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-644-A; TIA-644-A

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    1.75 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1.75 ns

  • Width:

    2 mm

FIN1101K8X Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the junction temperature (TJ) and adjust the design accordingly.
  • The maximum allowed voltage on the VIN pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, but ensure the device is properly cooled, and the current rating is within the specified limits. Use a heat sink if necessary, and follow the thermal design guidelines.
  • Check the input voltage, output voltage, and current. Verify the PCB layout and thermal design. Consult the datasheet and application notes for troubleshooting guidelines.
