The recommended land pattern for the FK20X5R1H225KN000 can be found in the TDK Corporation's Capacitor Land Pattern Guidelines document, which provides detailed information on pad layout, spacing, and dimensions for optimal mounting and soldering.
While the datasheet provides general information on the capacitor's frequency characteristics, it's essential to note that the FK20X5R1H225KN000 is designed for general-purpose use and may not be optimized for high-frequency applications. For high-frequency use, TDK Corporation offers specialized capacitor series, such as the C series, which are designed for high-frequency decoupling and filtering.
The FK20X5R1H225KN000 is a general-purpose capacitor and not specifically designed for automotive applications. For automotive use, TDK Corporation offers AEC-Q200 qualified capacitors, such as the FG series, which meet the stringent requirements for automotive systems.
The FK20X5R1H225KN000 has an MSL rating of 2, which means it can withstand a maximum of 30°C/60% RH for 40 hours. This rating indicates that the capacitor is suitable for standard reflow soldering processes, but it's essential to follow proper storage and handling procedures to prevent moisture absorption.
The FK20X5R1H225KN000 has a maximum operating temperature of 125°C, which is suitable for most general-purpose applications. However, for high-temperature applications above 125°C, TDK Corporation offers specialized capacitor series, such as the HT series, which are designed for extreme temperature environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FK20X5R1H225KN000 Overview

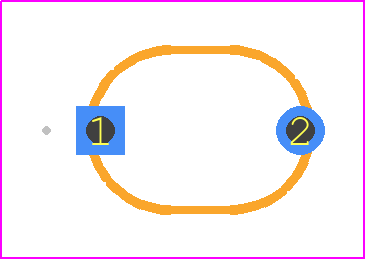

Use the download button to access the FK20X5R1H225KN000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FK20X,
or try a keyword search, such as Ceramic Capacitors
