FK20X7S2A475KR006 - TDK

Description: MLCC with Dipped Radial Lead, Capacitance=4.7μF, LxWxT:5.5x7x4mm, Lead pitch:5mm

Download FK20X7S2A475KR006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FK20X7S2A475KR006 - TDK - PCB symbol
click to zoom
PCB Footprints

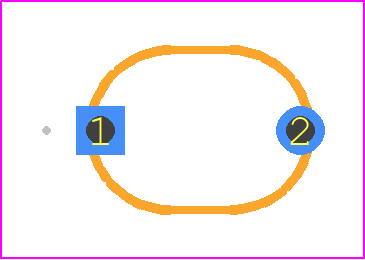

FK20X7S2A475KR006 - TDK PCB footprint - Other - Other - FK20
click to zoom
3D Models
FK20X7S2A475KR006 - TDK - 3D model - Other - FK20
click to zoom

FK20X7S2A475KR006 Details

  • Manufacturer Part Number:

    FK20X7S2A475KR006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • JESD-609 Code:

    e3

  • Number of Terminals:

    2

  • Terminal Finish:

    Tin (Sn)

FK20X7S2A475KR006 Frequently Asked Questions (FAQs)

  • The recommended land pattern for FK20X7S2A475KR006 can be found in the TDK Corporation's Capacitor Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for this specific capacitor.
  • The FK20X7S2A475KR006 capacitor is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. The capacitor's internal construction and materials are optimized to minimize the effects of high-frequency noise.
  • The FK20X7S2A475KR006 capacitor has a maximum operating temperature of 125°C, making it suitable for high-temperature applications. However, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure the capacitor operates within its specified limits.
  • The FK20X7S2A475KR006 capacitor is designed to withstand vibrations and shocks according to the IEC 60068-2-6 standard. However, it's crucial to consider the specific vibration and shock requirements of the application and consult with TDK Corporation or a qualified engineer to ensure the capacitor meets the necessary specifications.
  • The recommended soldering profile for FK20X7S2A475KR006 can be found in the TDK Corporation's Soldering Guidelines document, which provides detailed information on the recommended soldering temperatures, times, and techniques to ensure reliable assembly and minimize the risk of damage to the capacitor.
