FK28C0G1H221JN000 - TDK

Description: MLCC with Dipped Radial Lead, Capacitance=220pF, LxWxT:4x5.5x2.5mm, Lead pitch:5mm

Download FK28C0G1H221JN000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FK28C0G1H221JN000 - TDK - PCB symbol
click to zoom
PCB Footprints

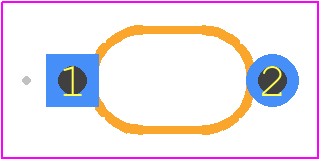

FK28C0G1H221JN000 - TDK PCB footprint - Other - Other - FK28
click to zoom
3D Models
FK28C0G1H221JN000 - TDK - 3D model - Other - FK28
click to zoom

FK28C0G1H221JN000 Details

  • Manufacturer Part Number:

    FK28C0G1H221JN000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.23.00.60

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Capacitance:

    0.00022 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    5.5 mm

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    50 V

  • Size Code:

    1610

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    C0G

  • Temperature Coefficient:

    30ppm/Cel ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    2.5 mm

FK28C0G1H221JN000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for FK28C0G1H221JN000 can be found in the TDK Corporation's Capacitor Land Pattern document, which provides guidelines for pad size, spacing, and layout to ensure reliable mounting and soldering.
  • The FK28C0G1H221JN000 capacitor is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). The capacitor's construction and materials minimize parasitic inductance, making it suitable for high-frequency applications.
  • Yes, the FK28C0G1H221JN000 capacitor is suitable for automotive applications. It meets the requirements of the AEC-Q200 standard, which ensures the component's reliability and performance in harsh automotive environments.
  • The maximum operating temperature for the FK28C0G1H221JN000 capacitor is 125°C, as specified in the datasheet. However, it's essential to consider the derating curve and temperature coefficient to ensure the capacitor's performance and reliability in specific applications.
  • Yes, the FK28C0G1H221JN000 capacitor is designed to withstand high-vibration environments. TDK Corporation's capacitors are tested to ensure they meet the requirements of various vibration standards, including IEC 60068-2-6.
