Panasonic recommends a PCB layout with a minimum pad size of 2.5mm x 2.5mm and a land pattern with a 1.5mm x 1.5mm pad for the terminals. A detailed layout and land pattern can be found in the Panasonic application note AN13474.
To ensure reliable soldering, Panasonic recommends using a soldering iron with a temperature range of 250°C to 260°C, and a soldering time of 2-3 seconds. Additionally, a solder with a melting point of 217°C to 221°C should be used. It's also important to follow the recommended soldering profile and avoid excessive soldering temperature or time.
While the datasheet specifies an operating temperature range of -40°C to 105°C, Panasonic recommends derating the component's power dissipation above 85°C to ensure reliable operation. It's essential to consider the application's thermal design and ensure the component's temperature remains within the recommended range.
Yes, FK6K02010L is designed to withstand vibrations up to 10G (10Hz to 2000Hz) according to the IEC 60068-2-6 standard. However, it's crucial to ensure the component is properly mounted and secured to the PCB to prevent damage or dislodging during vibration.
FK6K02010L is sensitive to electrostatic discharge (ESD). To prevent ESD damage, handle the component in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and storage procedures. It's also recommended to use ESD protection devices in the application circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FK6K02010L Overview

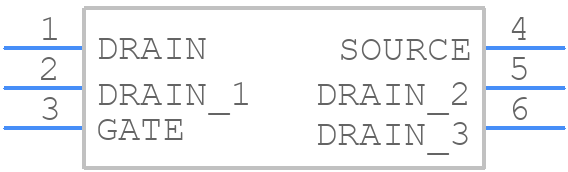

Use the download button to access the FK6K02010L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FK6K0,
or try a keyword search, such as Small Signal Field-Effect Transistors
