FLE-122-01-G-DV-P footprint, schematic symbol and 3D model by SAMTEC

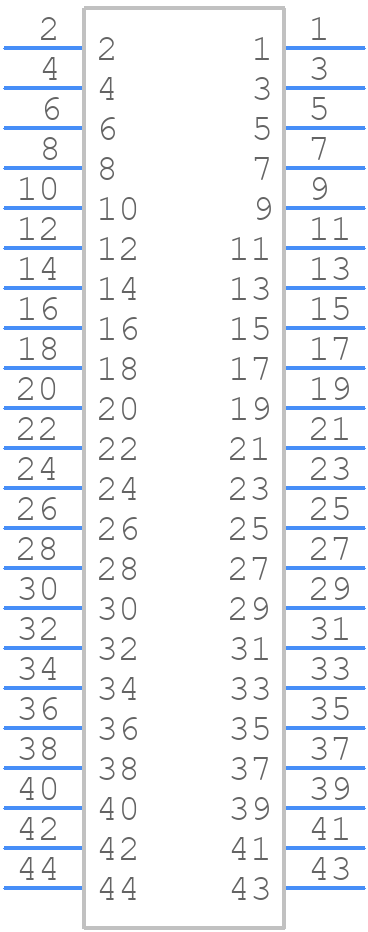

Symbol

click to zoom

PCB Footprints

FLE-122-01-G-DV-P - SAMTEC PCB footprint - Other - Other - FLE-122-01-X-DV-Y

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FLE-122-01-G-DV-P
Part Number FLE-122-01-G-DV-P
Manufacturer SAMTEC
Pin Count 44
Part Category Connector
Package Category Other
Footprint Name Other - FLE-122-01-X-DV-Y
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FLE-122-01-G-DV-P Details

Manufacturer Part Number:
FLE-122-01-G-DV-P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.4
Body Breadth:
0.131 inch
Body Depth:
0.179 inch
Body Length:
1.21 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
Durability:
100 Cycles
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Plating Thickness:
50u inch
Rated Current (Signal):
2.9 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
44

FLE-122-01-G-DV-P Frequently Asked Questions (FAQs)

The recommended mating sequence for FLE-122-01-G-DV-P is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the FLE-122-01-G-DV-P is designed to withstand high-vibration environments. The connector's rugged design and secure locking mechanism ensure reliable connections even in harsh conditions.
The FLE-122-01-G-DV-P has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications, including those in extreme temperature environments.
Yes, the FLE-122-01-G-DV-P is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
The typical lead time for delivery of FLE-122-01-G-DV-P connectors varies depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 2-4 weeks for standard orders.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FLE-122-01-G-DV-P Overview

Use the download button to access the FLE-122-01-G-DV-P schematic symbol and PCB footprint.
