FLE-150-01-G-DV-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

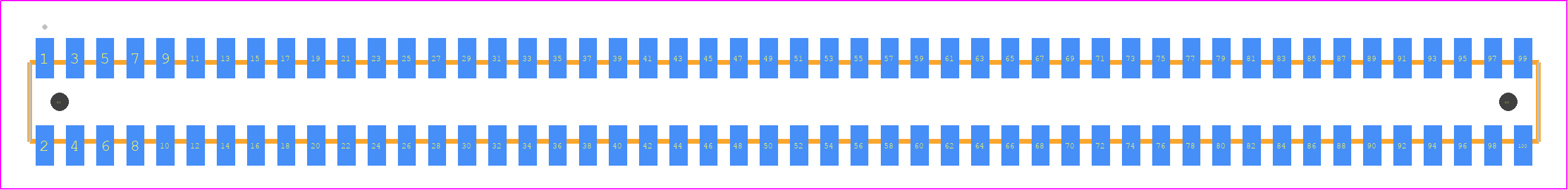

FLE-150-01-G-DV-A - SAMTEC PCB footprint - Other - Other - FLE-150-01-Y-DV-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FLE-150-01-G-DV-A
Part Number FLE-150-01-G-DV-A
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - FLE-150-01-Y-DV-A
Released Date Jun 26, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FLE-150-01-G-DV-A Details

Manufacturer Part Number:
FLE-150-01-G-DV-A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.4
Body Breadth:
0.131 inch
Body Depth:
0.179 inch
Body Length:
2.61 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
Durability:
100 Cycles
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Plating Thickness:
50u inch
Rated Current (Signal):
2.9 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
100

FLE-150-01-G-DV-A Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure secure mating and prevent damage to the connector.
Yes, the FLE-150-01-G-DV-A is designed to withstand high-vibration environments. The connector's screw locks and rugged design ensure reliable connections even in harsh conditions.
The FLE-150-01-G-DV-A operates within a temperature range of -40°C to 105°C (-40°F to 221°F). However, it's essential to consider the specific application and environmental conditions to ensure optimal performance.
Yes, the FLE-150-01-G-DV-A is compatible with lead-free soldering processes. Samtec Inc. ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The FLE-150-01-G-DV-A has a mating cycle life of 500 cycles minimum. This ensures reliable connections and minimizes the risk of wear and tear.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FLE-150-01-G-DV-A Overview

Use the download button to access the FLE-150-01-G-DV-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FLE-1, or try a keyword search, such as Headers and Edge Type Connectors
