For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a dedicated power plane, and a thermal pad connected to a heat sink or a thermal relief pattern. Ensure a minimum of 10mm clearance around the module for airflow and heat dissipation.
To ensure EMC compliance, follow the recommended PCB layout and shielding guidelines, use a metal enclosure, and ensure proper grounding and bonding. Additionally, consider using EMI filters and shielding components to minimize radiation and susceptibility.
For optimal performance, use low-ESR capacitors with a minimum capacitance of 10uF for the input and output. X5R or X7R ceramic capacitors are recommended. Ensure the capacitors are placed close to the module and connected to the correct pins.
For troubleshooting, check the input voltage, output load, and ambient temperature. Verify the PCB layout and thermal management. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for specific troubleshooting guidelines.
The FM20-100 is designed to meet high reliability standards. The MTBF (Mean Time Between Failures) is estimated to be >1 million hours at 25°C ambient temperature. However, actual reliability may vary depending on the application, operating conditions, and quality of the PCB assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FM20-100 Overview

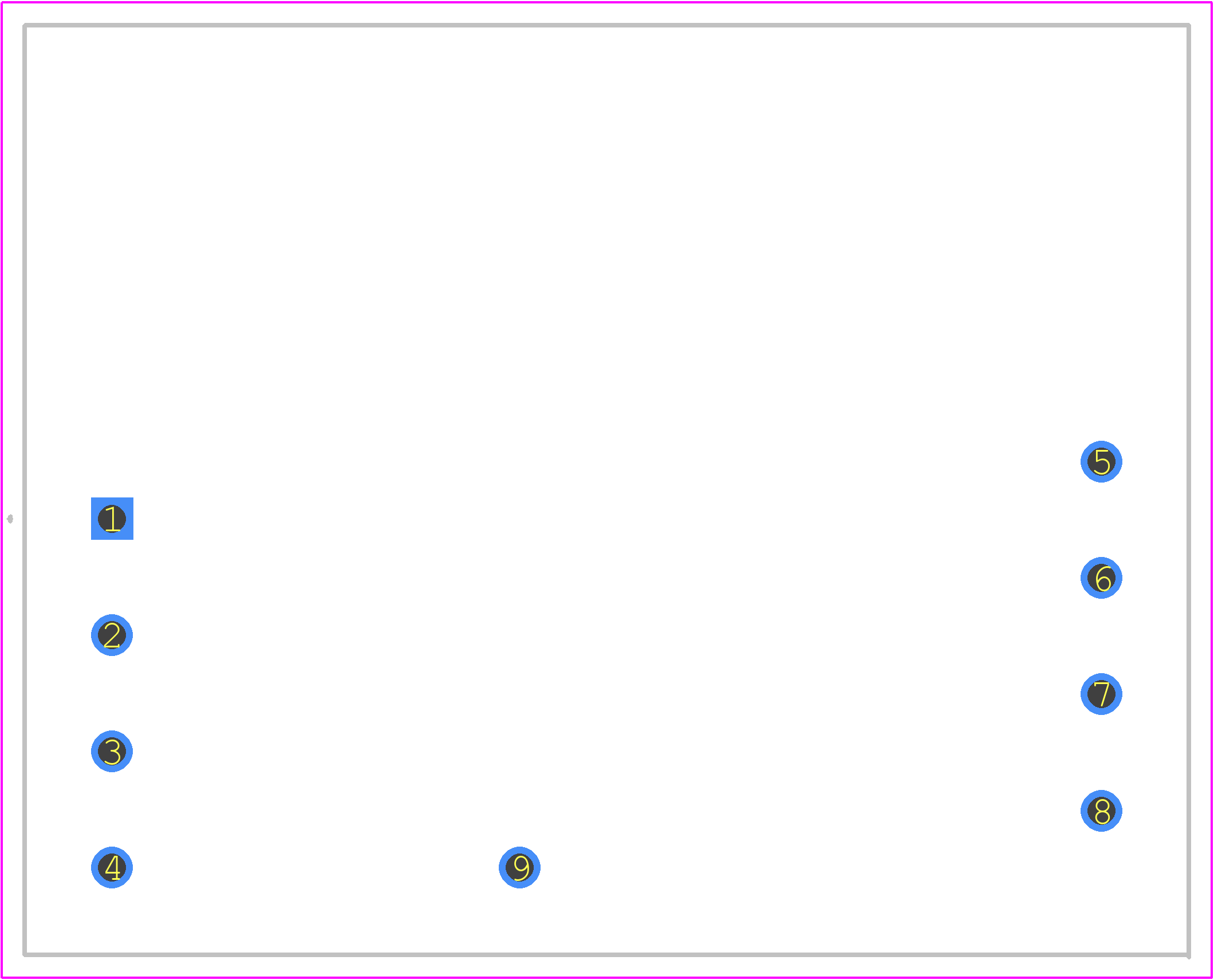

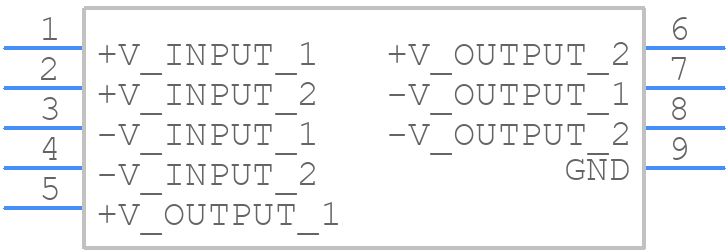

Use the download button to access the FM20-100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FM20-,
or try a keyword search, such as Data Line Filters
