FM25L16B-DG - Infineon

Description: Cypress Semiconductor FM25L16B-DG SPI FRAM Memory, 16kbit 8-Pin DFN

Download FM25L16B-DG Model
Schematic
symbols

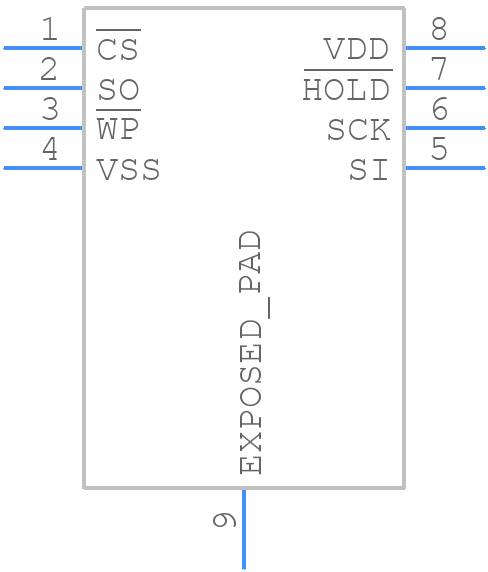

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FM25L16B-DG - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN 8
click to zoom
3D Models
FM25L16B-DG - Infineon  - 3D model - Small Outline No-lead - DFN 8
click to zoom

FM25L16B-DG Details

  • Manufacturer Part Number:

    FM25L16B-DG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    DATA RETENTION TIME @ 85 DEGREE CENTIGRADE

  • Clock Frequency-Max (fCLK):

    20 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000006 A

  • Standby Voltage-Min:

    2.7 V

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • Write Protection:

    HARDWARE/SOFTWARE

FM25L16B-DG Frequently Asked Questions (FAQs)

  • The FM25L16B-DG has a minimum of 100,000 write cycles per sector, and a total of 1,000,000 write cycles for the entire device.
  • The FM25L16B-DG uses a page write buffer to handle page writes. The buffer is 256 bytes, and the device can perform a page write in 5ms (typical) or 10ms (maximum).
  • The WP (Write Protect) pin is used to prevent writes to the status register and the block protection registers. When the WP pin is low, the device is in write-protect mode, and when it is high, the device is in normal operation mode.
  • The FM25L16B-DG has a built-in power-up reset circuit that resets the device when power is applied. During power-down, the device automatically goes into a low-power standby mode to conserve power.
  • The recommended operating voltage range for the FM25L16B-DG is 2.7V to 3.6V. Operating the device outside of this range may affect its performance and reliability.
