FM25W256-G - Infineon

Description: FRAM (Ferroelectric RAM) Memory IC 256Kbit SPI 20 MHz 8-SOIC

Download FM25W256-G Model

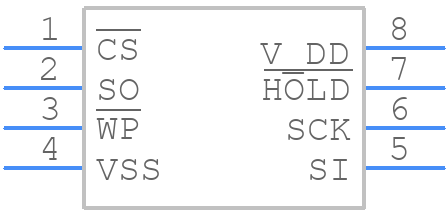

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FM25W256-G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC (150 Mils)-ren3
click to zoom
3D Models
FM25W256-G - Infineon  - 3D model - Small Outline Packages - 8-pin SOIC (150 Mils)-ren3
click to zoom

FM25W256-G Details

  • Manufacturer Part Number:

    FM25W256-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan, Thailand

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Access Time-Max:

    20 ns

  • Additional Feature:

    4KV ESD AVAILABLE

  • Clock Frequency-Max (fCLK):

    20 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.889 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00003 A

  • Standby Voltage-Min:

    2.7 V

  • Supply Current-Max:

    0.002 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.8985 mm

  • Write Protection:

    HARDWARE/SOFTWARE
