FM4-NZRP-PCB-1 - Amphenol

Description: RF Connectors / Coaxial Connectors FAKRA RA PCB-PLG T/H KEYCODE Z

Download FM4-NZRP-PCB-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

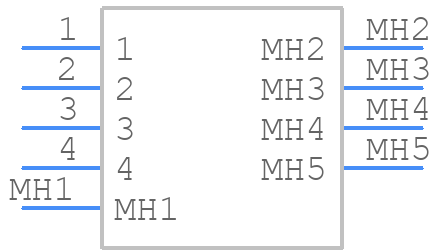

FM4-NZRP-PCB-1 - Amphenol - PCB symbol
click to zoom
PCB Footprints

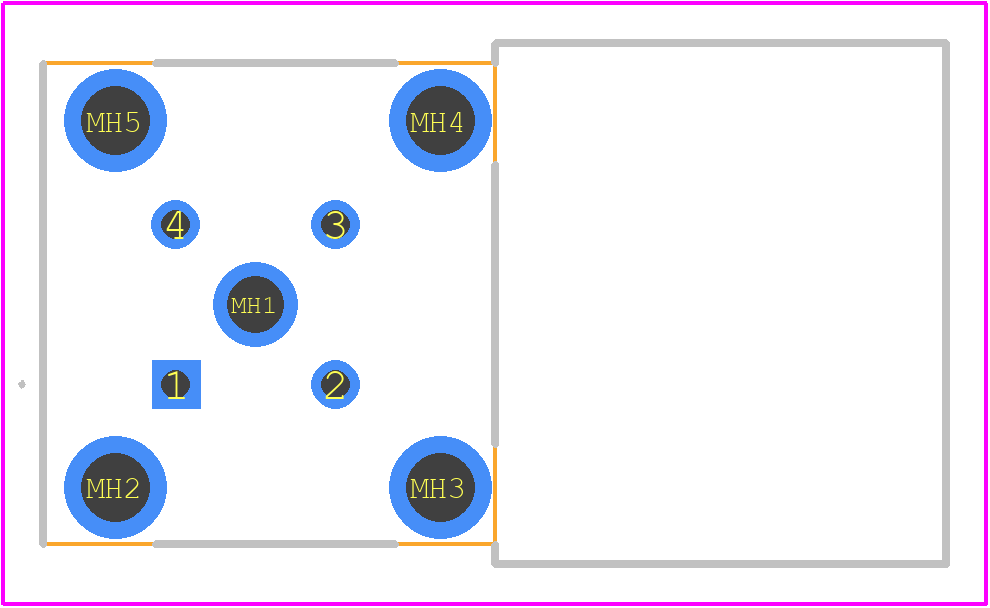

FM4-NZRP-PCB-1 - Amphenol PCB footprint - Other - Other - FM4-NZRP-PCB-1-4
click to zoom
3D Models
FM4-NZRP-PCB-1 - Amphenol - 3D model - Other - FM4-NZRP-PCB-1-4
click to zoom

FM4-NZRP-PCB-1 Details

  • Manufacturer Part Number:

    FM4-NZRP-PCB-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Body Breadth:

    0.618 inch

  • Body Depth:

    0.888 inch

  • Body Length:

    0.472 inch

  • Body/Shell Style:

    PLUG

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF SMB CONNECTOR

  • Contact Gender:

    MALE

  • Contact Resistance:

    5 mΩ

  • Contact Style:

    COAX

  • Coupling Type:

    SNAP

  • Dielectric Withstanding Voltage:

    1131VAC V

  • Durability:

    25 Cycles

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    4

  • Operating Frequency-Max:

    9 GHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Panel Mount:

    NO

  • Rated Current (Signal):

    2 A

  • Shell Finish:

    TIN

  • Shell Material:

    ZINC ALLOY

  • Terminal Length:

    0.065 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

  • VSWR:

    1.67

FM4-NZRP-PCB-1 Frequently Asked Questions (FAQs)

  • Amphenol provides a recommended PCB layout and footprint in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
  • To ensure reliable mating and unmating, follow the recommended mating sequence, use the correct torque specification, and keep the connector clean and free of debris. Additionally, consider using a connector savers or protective caps to prevent damage.
  • The maximum operating temperature range for FM4-NZRP-PCB-1 is typically -55°C to 125°C, but this may vary depending on the specific application and environment. Consult the datasheet or contact Amphenol's technical support for more information.
  • Yes, FM4-NZRP-PCB-1 is designed to withstand high-vibration and high-shock environments, but the specific requirements and testing should be consulted in the datasheet or with Amphenol's technical support.
  • To prevent ESD damage, follow proper handling and storage procedures, use ESD-protective equipment and materials, and consider implementing ESD protection devices or circuits in the design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FM4-NZRP-PCB-1 Overview

Use the download button to access the FM4-NZRP-PCB-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FM4-N, or try a keyword search, such as RF SMB/SSMB Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
