FMH09N90E - FUJI ELECTRIC

Description: ic

Download FMH09N90E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FMH09N90E - FUJI ELECTRIC - PCB symbol
click to zoom
PCB Footprints

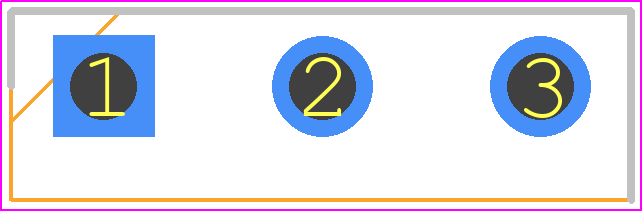

FMH09N90E - FUJI ELECTRIC PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-3P(Q)
click to zoom
3D Models
FMH09N90E - FUJI ELECTRIC - 3D model - Transistor Outline, Vertical - TO-3P(Q)
click to zoom

FMH09N90E Details

  • Manufacturer Part Number:

    FMH09N90E

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TO-3P(Q

  • Package Description:

    TO-3P(Q), 3 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • Manufacturer:

    Fuji Electric Co Ltd

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    565.3 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    900 V

  • Drain Current-Max (ID):

    9 A

  • Drain-source On Resistance-Max:

    1.4 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    36 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FMH09N90E Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the FMH09N90E is 150°C, but it's recommended to operate it at a maximum of 125°C for reliable performance and longevity.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using a suitable thermal interface material, and maintaining adequate airflow around the module. The heat sink should be designed to keep the module temperature below 125°C.
  • The recommended gate resistance for the FMH09N90E is between 10 ohms and 20 ohms. This value helps to prevent oscillations and ensures stable switching performance.
  • Yes, the FMH09N90E can be used in a parallel configuration, but it's essential to ensure that the modules are matched in terms of electrical characteristics and thermal performance. Additionally, the gate drive circuitry should be designed to accommodate the parallel configuration.
  • The maximum allowable voltage transient for the FMH09N90E is ±10% of the rated voltage. Exceeding this limit can cause damage to the module or affect its reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FMH09N90E Overview

Use the download button to access the FMH09N90E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FMH09, or try a keyword search, such as Power Field-Effect Transistors
