FMH28N50ES - FUJI ELECTRIC

Description: N-CHANNEL SILICON POWER MOSFET 500V,28A,-55 to + 150 °C,TO-3P

Download FMH28N50ES Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

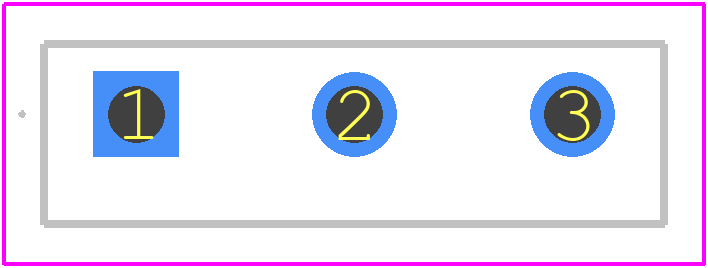

FMH28N50ES - FUJI ELECTRIC PCB footprint - Other - Other - TO-3P (Q)
click to zoom
3D Models
FMH28N50ES - FUJI ELECTRIC  - 3D model - Other - TO-3P (Q)
click to zoom

FMH28N50ES Details

  • Manufacturer Part Number:

    FMH28N50ES

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TO-3P(Q

  • Package Description:

    TO-3P(Q), SC-65, 3 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • Manufacturer:

    Fuji Electric Co Ltd

  • YTEOL:

    3

  • Additional Feature:

    LOW NOISE

  • Avalanche Energy Rating (Eas):

    1033.1 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    500 V

  • Drain Current-Max (ID):

    28 A

  • Drain-source On Resistance-Max:

    0.19 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    400 W

  • Pulsed Drain Current-Max (IDM):

    112 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FMH28N50ES Frequently Asked Questions (FAQs)

  • The recommended gate resistor value is typically between 10 ohms to 20 ohms, but it may vary depending on the specific application and switching frequency. It's recommended to consult the application note or contact Fuji Electric's technical support for more information.
  • Proper cooling is crucial for the FMH28N50ES. Ensure good thermal contact between the module and the heat sink, and use a thermal interface material if necessary. The heat sink should be designed to provide adequate airflow, and the system should be designed to operate within the recommended junction temperature range.
  • The maximum allowable voltage imbalance between the DC link capacitors is typically ±5% of the nominal voltage. Exceeding this limit can lead to uneven current sharing and reduced reliability. It's recommended to use high-quality capacitors with low equivalent series resistance (ESR) and to ensure proper capacitor selection and matching.
  • Implement overcurrent protection using a fast-acting fuse or a current-sensing circuit that can detect overcurrent conditions. For overvoltage protection, use a voltage-sensing circuit that can detect voltage transients and spikes. Additionally, consider using a surge protection device (SPD) to protect the module from voltage surges and spikes.
  • The recommended dead time for the FMH28N50ES is typically between 1-2 microseconds, depending on the specific application and switching frequency. However, it's recommended to consult the application note or contact Fuji Electric's technical support for more information, as the optimal dead time may vary depending on the specific use case.
