FMS006-2610-0 - Yamaichi

Description: Memory Card Connectors STANDARD MOUNT SIM CARD PUSH-PUSH TYPE

Download FMS006-2610-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FMS006-2610-0 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

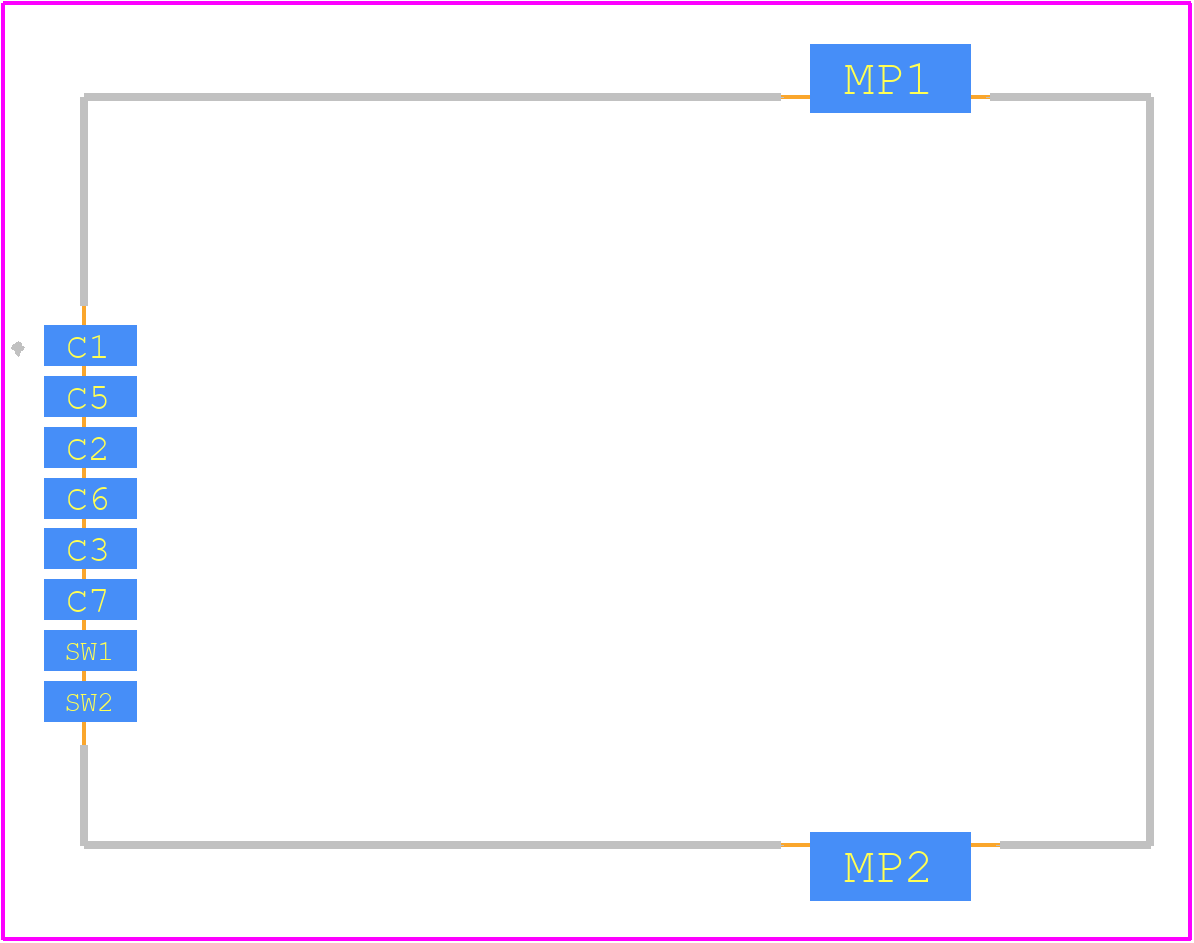

FMS006-2610-0 - Yamaichi PCB footprint - Other - Other - FMS006-2610-0-1
click to zoom
3D Models
FMS006-2610-0 - Yamaichi - 3D model - Other - FMS006-2610-0-1
click to zoom

FMS006-2610-0 Details

  • Manufacturer Part Number:

    FMS006-2610-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Body Breadth:

    0.102 inch

  • Body Depth:

    1.049 inch

  • Body Length:

    0.803 inch

  • Connector Type:

    PCMCIA CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    100 mΩ

  • Dielectric Withstanding Voltage:

    350VAC V

  • Durability:

    5000 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

FMS006-2610-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Yamaichi Electronics Co Ltd for specific torque values.
  • Yes, the FMS006-2610-0 is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to consult the datasheet or contact Yamaichi Electronics Co Ltd for specific vibration testing and ratings.
  • Yes, the FMS006-2610-0 is compatible with lead-free soldering processes. The connector is designed to meet the requirements of lead-free soldering and can withstand the higher temperatures involved in the process.
  • The operating temperature range for the FMS006-2610-0 is -40°C to 105°C. However, it's recommended to consult the datasheet or contact Yamaichi Electronics Co Ltd for specific temperature ratings and derating information.
  • The FMS006-2610-0 has a moisture-resistant design, but it's not intended for use in submerged or continuously wet environments. It's recommended to consult the datasheet or contact Yamaichi Electronics Co Ltd for specific environmental ratings and recommendations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FMS006-2610-0 Overview

Use the download button to access the FMS006-2610-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FMS00, or try a keyword search, such as Headers and Edge Type Connectors
