FN1-0801W4SM0SBW - FORGE

Description: FORGE - FN1-0801W4SM0SBW - 7 Segment LED Display, White, 20 mA, 3.8 V, 390 mcd, 1, 20 mm

Download FN1-0801W4SM0SBW Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FN1-0801W4SM0SBW model

Email notifications will be applied after download.

Send part feedback

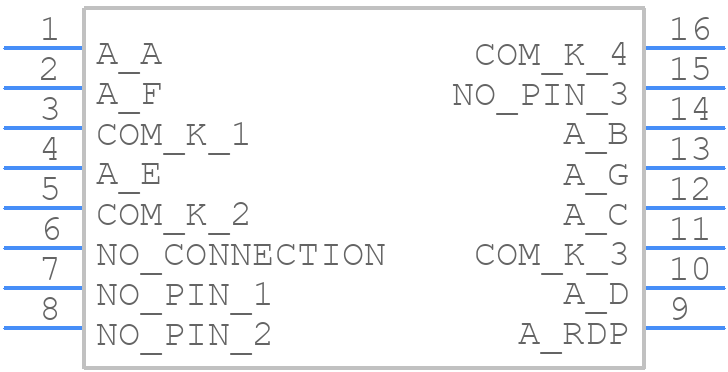

Symbol

FN1-0801W4SM0SBW - FORGE - PCB symbol

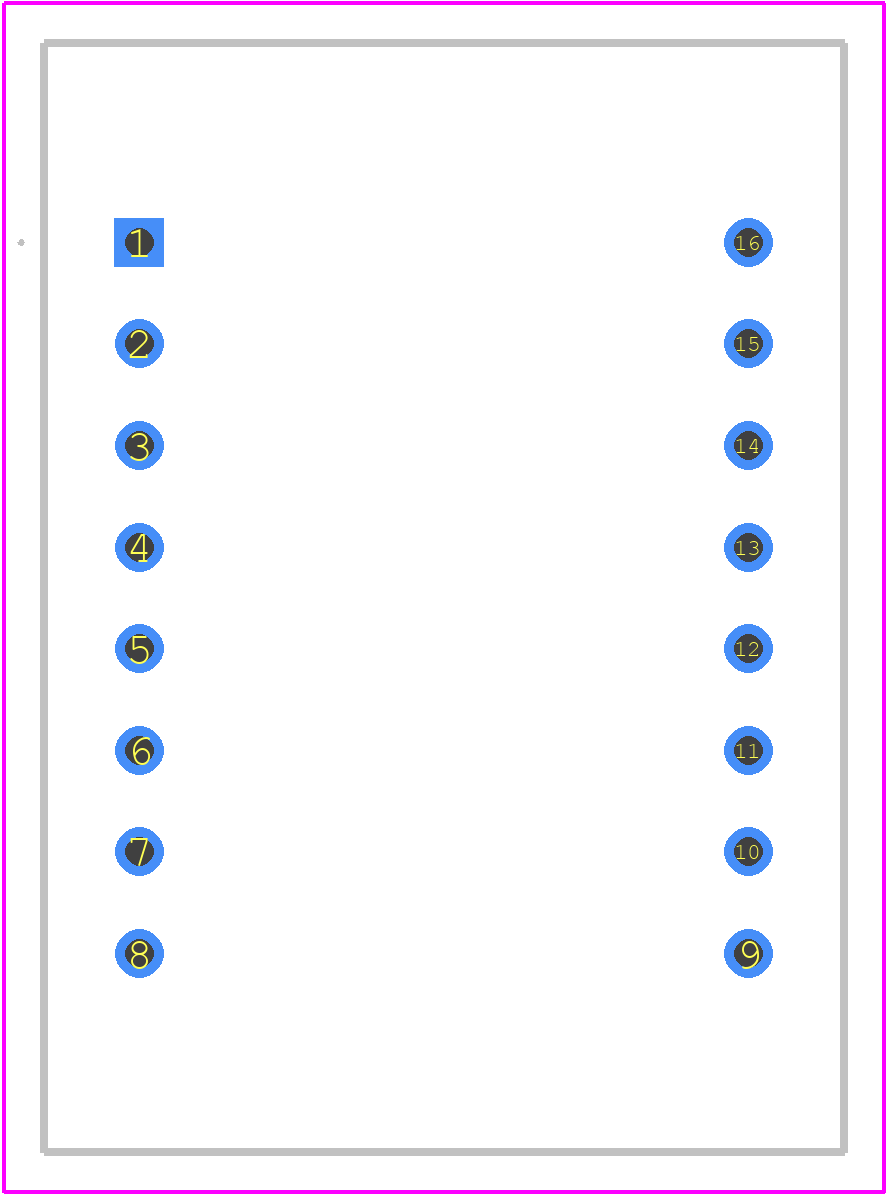

PCB Footprints

FN1-0801W4SM0SBW - FORGE PCB footprint - Other - Other - FN1-0801W4SM0SBW-1

3D Models

FN1-0801W4SM0SBW - FORGE - 3D model - Other - FN1-0801W4SM0SBW-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for FN1-0801W4SM0SBW
Part Number FN1-0801W4SM0SBW
Manufacturer FORGE
Pin Count 16
Part Category Display
Package Category Other
Footprint Name Other - FN1-0801W4SM0SBW-1
Released Date Nov 11, 2022
Last Modified Date Sep 23, 2024 8:44 AM UTC
Pinout / Pin List Click Here (Member Only)

FN1-0801W4SM0SBW Details

Manufacturer Part Number:
FN1-0801W4SM0SBW
Manufacturer:
Forge Europa Ltd

Trust Checks

Community Provided

System Verified

Community Approved

FN1-0801W4SM0SBW Overview

Use the download button to access the FN1-0801W4SM0SBW schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FN1-0, or try a keyword search, such as LED Displays
