FN1-1002W4SM00BW - FORGE

Description: DISPLAY, SEVEN SEGMENT, 25MM, WHITE

Download FN1-1002W4SM00BW Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FN1-1002W4SM00BW model

Email notifications will be applied after download.

Send part feedback

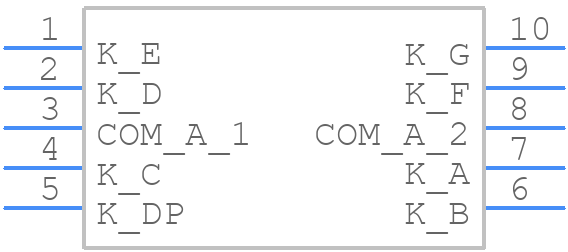

Symbol

FN1-1002W4SM00BW - FORGE - PCB symbol

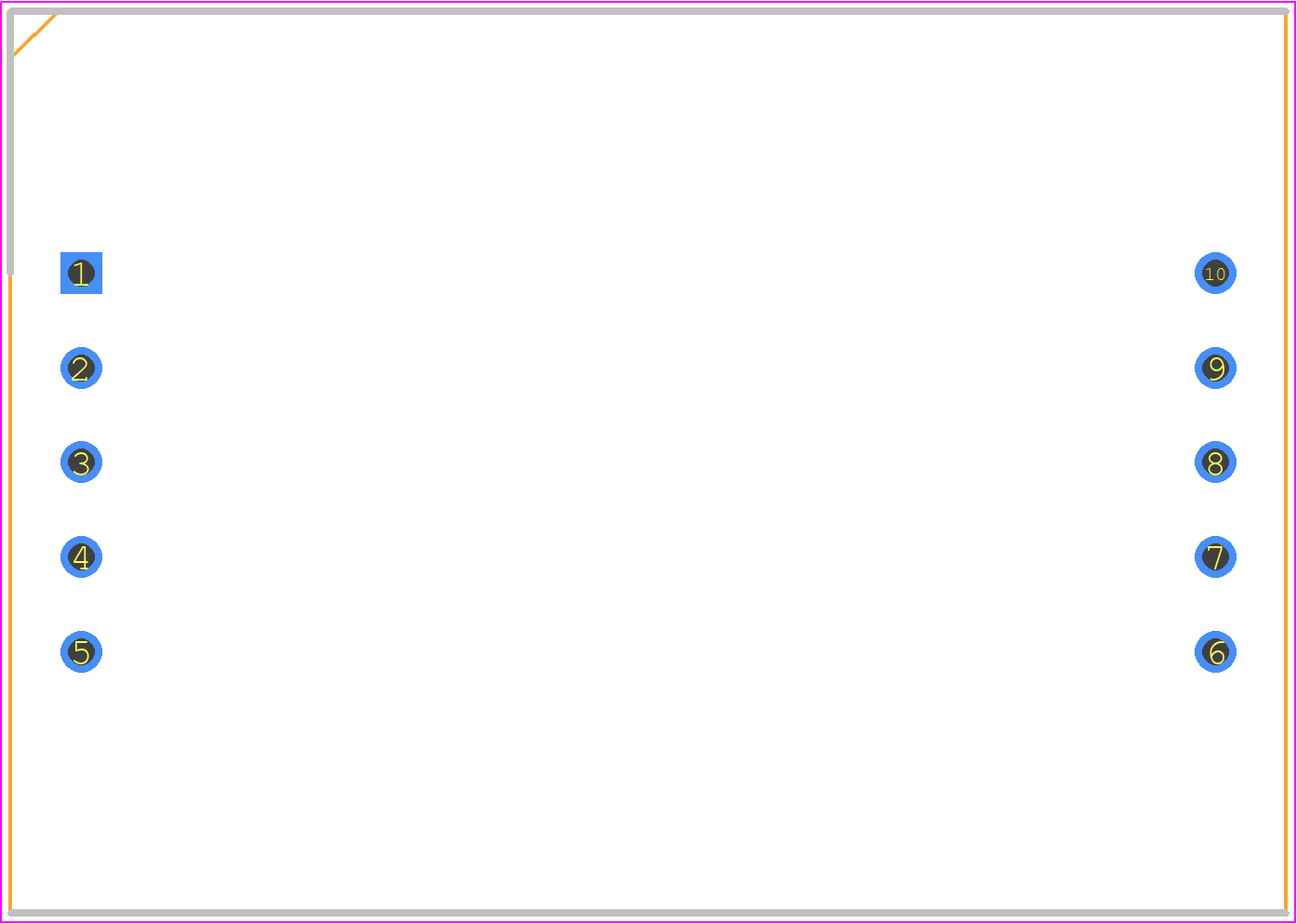

PCB Footprints

FN1-1002W4SM00BW - FORGE PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-Lead DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for FN1-1002W4SM00BW
Part Number FN1-1002W4SM00BW
Manufacturer FORGE
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 10-Lead DIP
Released Date Jul 6, 2023
Last Modified Date Jul 7, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

FN1-1002W4SM00BW Details

Manufacturer Part Number:
FN1-1002W4SM00BW
Manufacturer:
Forge Europa Ltd

Trust Checks

Community Provided

System Verified

Community Approved

FN1-1002W4SM00BW Overview

Use the download button to access the FN1-1002W4SM00BW schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FN1-1, or try a keyword search, such as LED Displays
