- Part Number FN402-0.5-02
- Manufacturer Schaffner
- Pin Count 5
- Part Category Filter
- Package Category Other

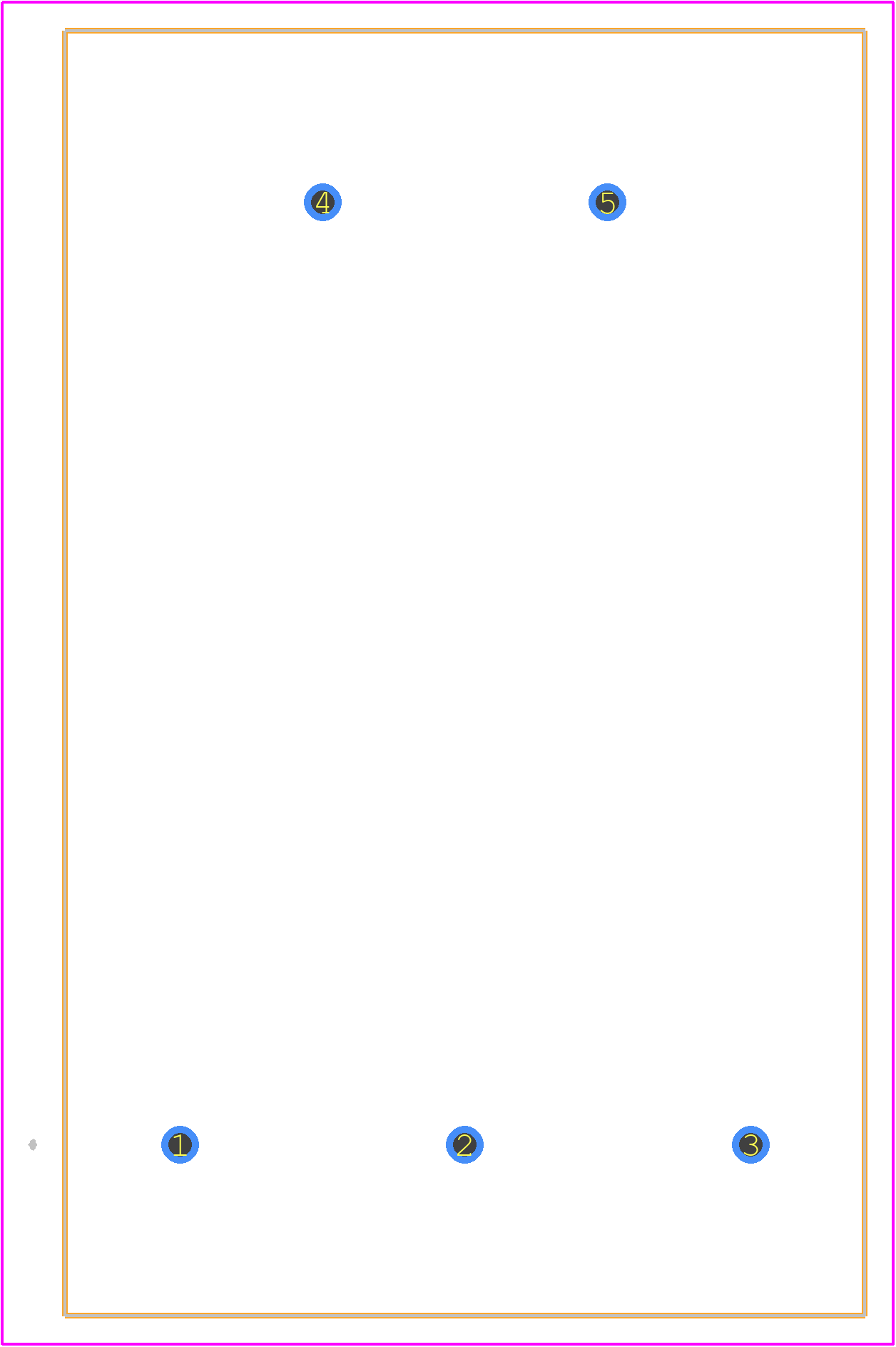

- Footprint Name Other - FN402-0.5-02-1
- Released Date Jun 22, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FN402-0.5-02 Details
-
Manufacturer Part Number:
FN402-0.5-02
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
Schaffner
-
YTEOL:
7.7
-
Approvals:
UL; CSA; ENEC-14
-
Filter Type:
SINGLE PHASE EMI FILTER
FN402-0.5-02 Frequently Asked Questions (FAQs)
-
The operating temperature range of FN402-0.5-02 is -40°C to +100°C.
-
Yes, FN402-0.5-02 is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 1, Class B.
-
Yes, FN402-0.5-02 is designed for use in safety-critical applications and meets the requirements of IEC 61508 SIL 2 and IEC 62368-1.
-
The maximum permissible leakage current of FN402-0.5-02 is 0.5 mA.
-
Yes, FN402-0.5-02 is compatible with medical equipment and meets the requirements of IEC 60601-1.
Trust Checks
Expert Contribution
System Verified
Community Approved
FN402-0.5-02 Overview
Use the download button to access the FN402-0.5-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FN402,
or try a keyword search, such as Mains Filters
