FN402-1-02 - Schaffner

Description: Single Phase EMC/EMI Line Filter 1 A 250VAC DC ~ 400Hz Single Stage PC Pins

Download FN402-1-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

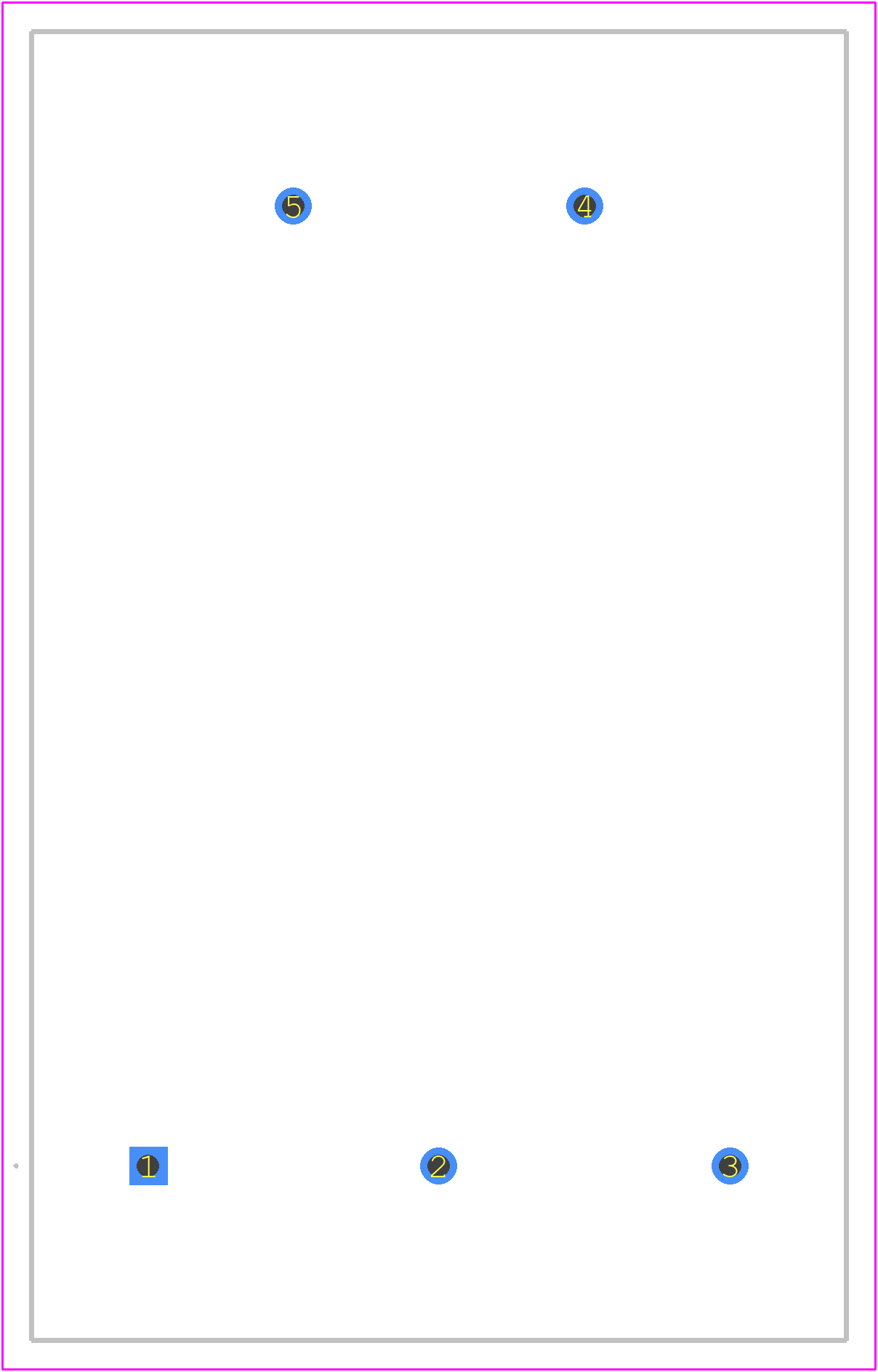

FN402-1-02 - Schaffner PCB footprint - Other - Other - FN402-1-02-2
click to zoom
3D Models
FN402-1-02 - Schaffner  - 3D model - Other - FN402-1-02-2
click to zoom

FN402-1-02 Details

  • Manufacturer Part Number:

    FN402-1-02

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Thailand

  • Manufacturer:

    Schaffner

  • YTEOL:

    8

  • Approvals:

    UL; CSA; ENEC-14

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    16.5 mm

  • High Pot:

    2000 V

  • Leakage Current-Max:

    0.373 mA

  • Length:

    45 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency:

    50/60Hz Hz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Rated Current:

    1.2 A

  • Rated Voltage:

    250 V

  • Width:

    28 mm

FN402-1-02 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FN402-1-02 is -40°C to 100°C, with a derating of 1.5% per Kelvin above 80°C.
  • To ensure proper grounding, connect the grounding pin of the FN402-1-02 to a low-impedance ground point on the PCB, and ensure that the ground plane is not interrupted by any slots or cutouts.
  • The recommended PCB layout for the FN402-1-02 involves placing the filter as close as possible to the power entry point, with the input and output traces separated by a ground plane to minimize electromagnetic interference (EMI).
  • Yes, the FN402-1-02 can be used in a redundant power supply configuration, but it's essential to ensure that the filters are properly synchronized to prevent any potential resonance issues.
  • To troubleshoot common mode noise issues, check the PCB layout for any potential noise coupling paths, ensure proper grounding, and verify that the filter is properly installed and connected.
