FN402-1.6-02 - Schaffner

Description: Power Line Filters 1.6A 250VAC 50/60HZ LOW-COST PCB FILTER

Download FN402-1.6-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FN402-1.6-02 - Schaffner - PCB symbol
click to zoom
PCB Footprints

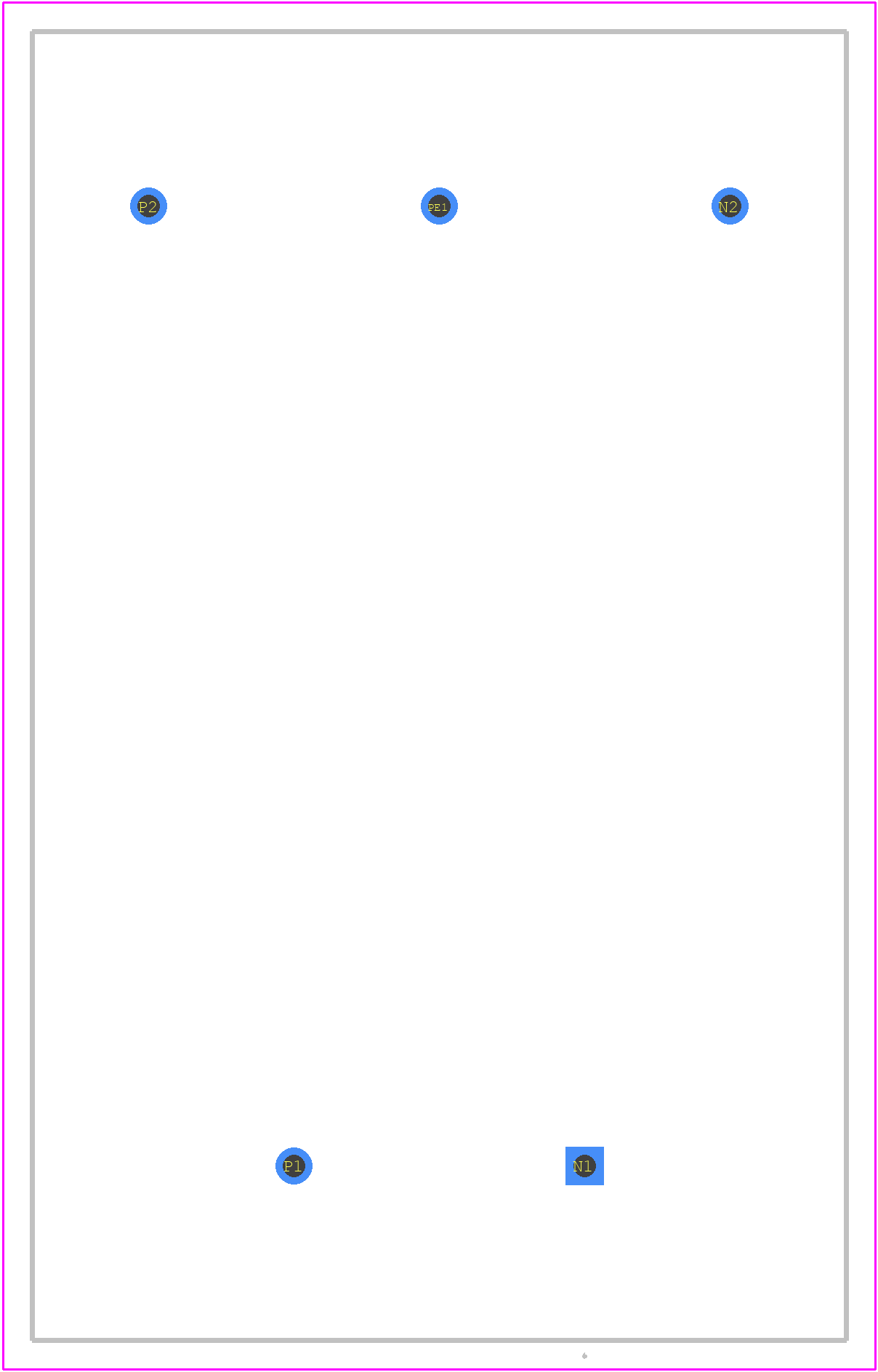

FN402-1.6-02 - Schaffner PCB footprint - Other - Other - FN402-1.6-02-1
click to zoom
3D Models
FN402-1.6-02 - Schaffner - 3D model - Other - FN402-1.6-02-1
click to zoom

FN402-1.6-02 Details

  • Manufacturer Part Number:

    FN402-1.6-02

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • Manufacturer:

    Schaffner

  • YTEOL:

    8

  • Approvals:

    UL; CSA; ENEC-14

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    16.5 mm

  • High Pot:

    2000 V

  • Leakage Current-Max:

    0.373 mA

  • Length:

    45 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency:

    50/60Hz Hz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Rated Current:

    1.9 A

  • Rated Voltage:

    250 V

  • Width:

    28 mm

FN402-1.6-02 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FN402-1.6-02 is -40°C to 100°C.
  • Yes, the FN402-1.6-02 is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 1, Class B.
  • Yes, the FN402-1.6-02 is designed for use in safety-critical applications and meets the requirements of IEC 61508 SIL 2 and IEC 62368-1.
  • The typical lead time for delivery of the FN402-1.6-02 is 6-8 weeks, but this may vary depending on the quantity and specific requirements of the order.
  • Yes, the FN402-1.6-02 is fully compliant with RoHS and REACH regulations, making it suitable for use in a wide range of applications.
