- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FN406-6-02
- Part Number FN406-6-02
- Manufacturer Schaffner
- Pin Count 5
- Part Category Filter
- Package Category Other

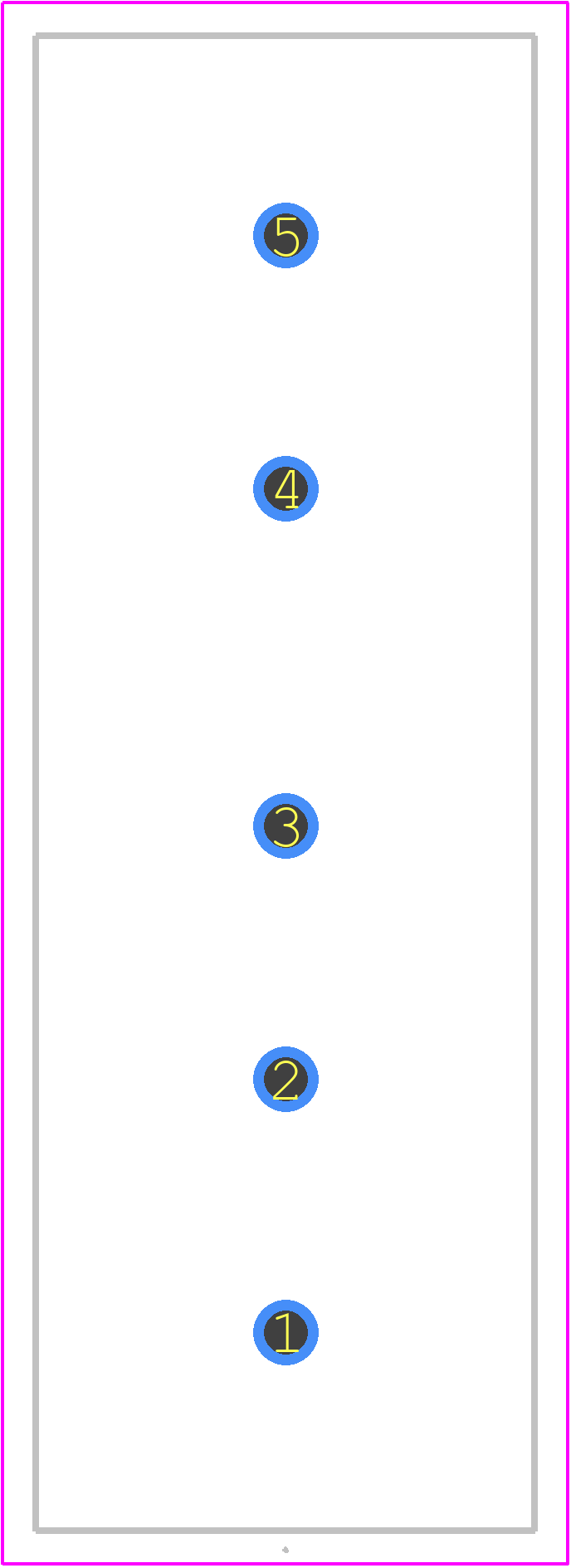

- Footprint Name Other - FN406-6-02-2
- Released Date Aug 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FN406-6-02 Details
-
Manufacturer Part Number:
FN406-6-02
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Country Of Origin:
Thailand
-
Manufacturer:
Schaffner
-
YTEOL:
7.95
-
Additional Feature:
INDUCTANCE 0.78 MILLIHENRY
-
Approvals:
UL; CSA; ENEC-14
-
Filter Type:
SINGLE PHASE EMI FILTER
-
Height:
28 mm
FN406-6-02 Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the FN406-6-02 is -40°C to 100°C.
-
Yes, the FN406-6-02 is designed for high-frequency applications up to 400 Hz and is suitable for use in switch-mode power supplies, DC-DC converters, and other high-frequency circuits.
-
The maximum current rating for the FN406-6-02 is 6 A.
-
Yes, the FN406-6-02 meets the safety standards of UL 60950-1, EN 60950-1, and IEC 60950-1, and is certified by UL, ENEC, and CQC.
-
Yes, the FN406-6-02 is suitable for use in medical devices, as it meets the safety standards of IEC 60601-1 and is certified by UL and ENEC for medical applications.
Trust Checks
Community Provided
System Verified
Community Approved
FN406-6-02 Overview
Use the download button to access the FN406-6-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FN406,
or try a keyword search, such as Mains Filters
