FN406B-8.4-02 footprint, schematic symbol and 3D model by Schaffner

Symbol

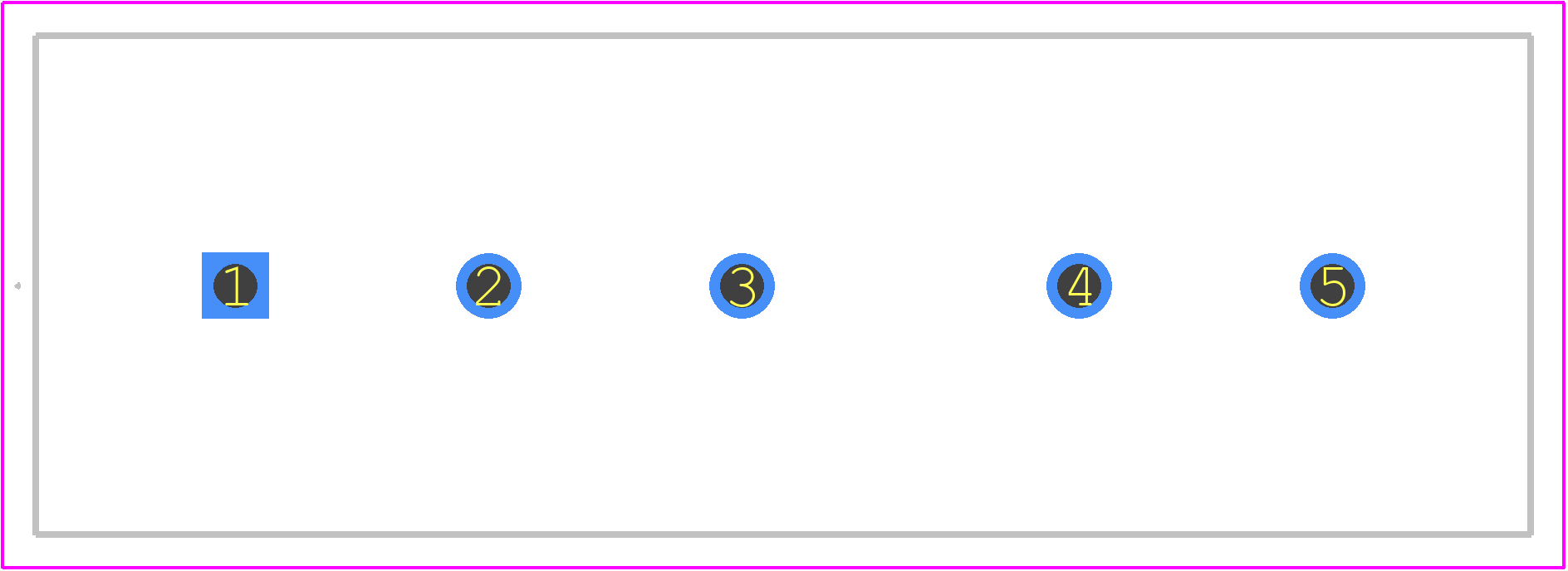

PCB Footprints

3D Models

FN406B-8.4-02 Details

Schaffner recommends a symmetrical PCB layout with the filter placed close to the power entry point, and the input and output lines separated to minimize electromagnetic interference (EMI).
While the FN406B-8.4-02 is rated for operation up to 80°C, it's recommended to derate the current by 1% for every 1°C above 60°C to ensure reliable operation. Consult Schaffner's application notes for more information.
The FN406B-8.4-02 meets various safety certifications, including UL, cUL, and ENEC. Ensure you specify the correct certification requirements when ordering, and consult Schaffner's documentation for certification details.
Schaffner recommends a torque of 0.5 Nm to 1.5 Nm for the screws on the FN406B-8.4-02 to ensure secure mounting and prevent damage.
While the FN406B-8.4-02 is a general-purpose filter, it may not meet the specific requirements for medical or aerospace applications. Consult Schaffner's application engineers to determine the suitability of the FN406B-8.4-02 or recommend alternative products.

Community Provided

System Verified

Community Approved

Use the download button to access the FN406B-8.4-02 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FN406, or try a keyword search, such as Mains Filters
