FN409-13-02 - Schaffner

Description: Single phase PCB mount filter,13A Schaffner FN409 Series Power Line Filter

Download FN409-13-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

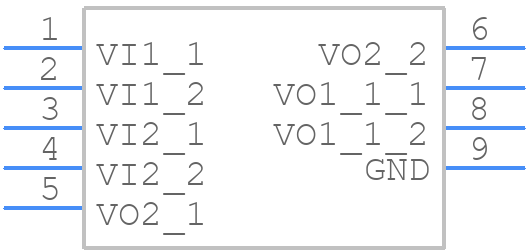

FN409-13-02 - Schaffner - PCB symbol
click to zoom
PCB Footprints

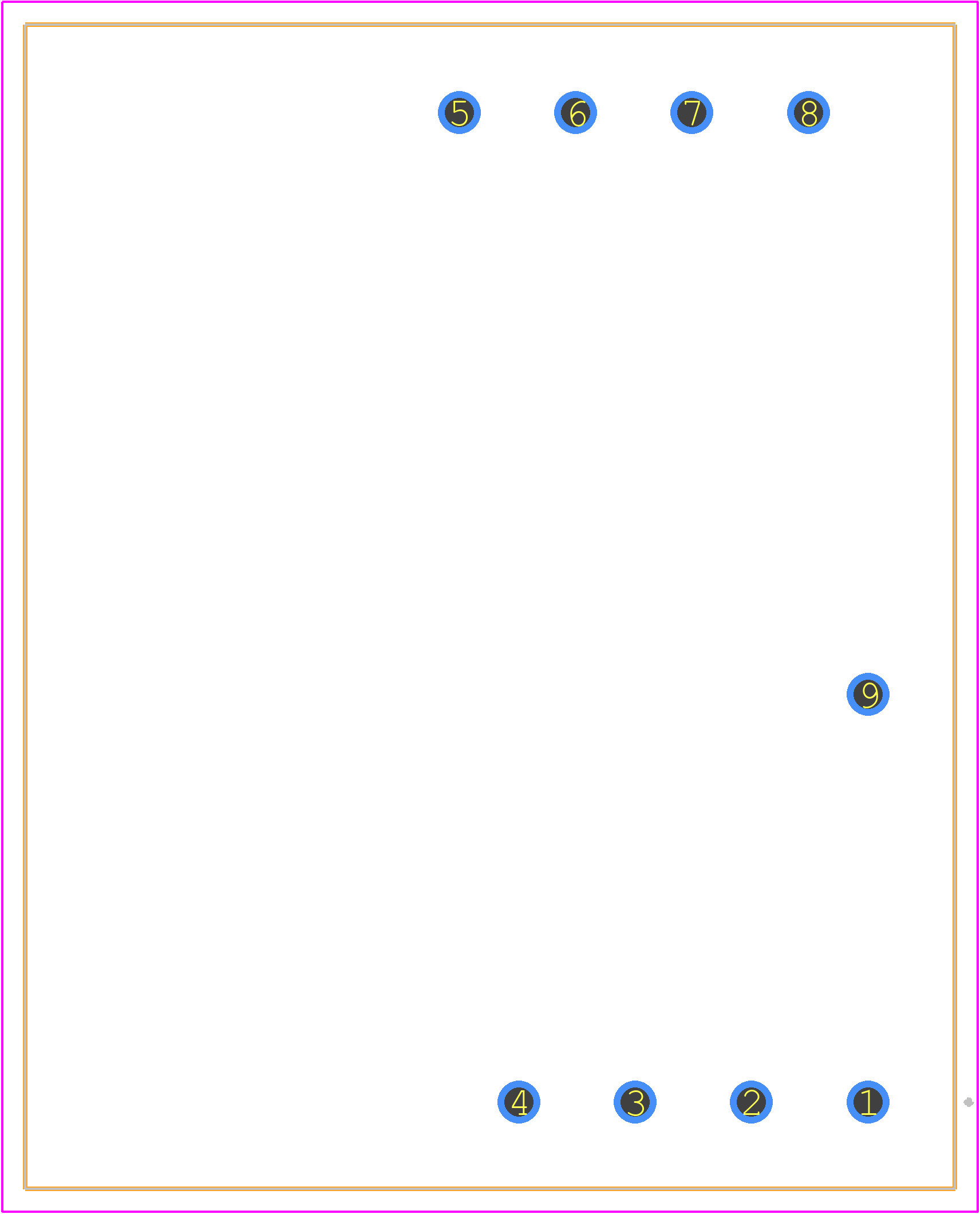

FN409-13-02 - Schaffner PCB footprint - Other - Other - FN409-13-02-2
click to zoom
3D Models
FN409-13-02 - Schaffner - 3D model - Other - FN409-13-02-2
click to zoom

FN409-13-02 Details

  • Manufacturer Part Number:

    FN409-13-02

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    MODULE

  • Pin Count:

    9

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Schaffner

  • YTEOL:

    7.29

  • Approvals:

    CSA; EN; IEC; SEMKO; UL

  • Capacitance:

    4700000 µF

  • DC Resistance-Max:

    0.0078 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • Inductance:

    80 µH

  • Length:

    50.8 mm

  • Mounting Type:

    PANEL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Current:

    14 A

  • Rated Voltage:

    75 V

  • Terminal Finish:

    MATTE TIN

  • Width:

    40.6 mm

FN409-13-02 Frequently Asked Questions (FAQs)

  • Schaffner recommends a symmetrical PCB layout with the filter's input and output stages separated by a ground plane to minimize electromagnetic interference (EMI).
  • The FN409-13-02 is designed to attenuate high-frequency noise and transients through its proprietary filter design, which includes a combination of inductive and capacitive components.
  • The FN409-13-02 is rated for operation up to 85°C, but derating may be necessary for higher temperatures. Consult Schaffner's application notes for specific guidance.
  • The FN409-13-02 is rated for a maximum surge current of 100 A, 1 ms, 1 kHz, but this may vary depending on the specific application and installation.
  • The FN409-13-02 is designed to minimize signal distortion and attenuation, ensuring that the filtered signal remains intact and unaffected.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FN409-13-02 Overview

Use the download button to access the FN409-13-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FN409, or try a keyword search, such as Data Line Filters
