Schaffner recommends a symmetrical PCB layout with the filter placed close to the power entry point, and the input and output lines should be routed separately to minimize electromagnetic interference (EMI).
The FN409-3-02 is designed to attenuate high-frequency noise and transients through its proprietary filter design, which includes a combination of inductors, capacitors, and resistors. This helps to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
Yes, the FN409-3-02 is designed and manufactured to meet the requirements of high-reliability applications, including industrial, medical, and aerospace industries. It is built with high-quality components and undergoes rigorous testing to ensure its performance and reliability.
The FN409-3-02 is rated for up to 10A of current, making it suitable for applications with moderate to high power requirements. However, it's essential to ensure that the filter is properly sized and derated for the specific application to avoid overheating and ensure reliable operation.
The FN409-3-02 is designed to minimize signal attenuation and distortion, ensuring that the signal integrity of the system is maintained. The filter's insertion loss is typically less than 1 dB, and its impedance is matched to the system's impedance to minimize signal reflections.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FN409-3-02 Overview

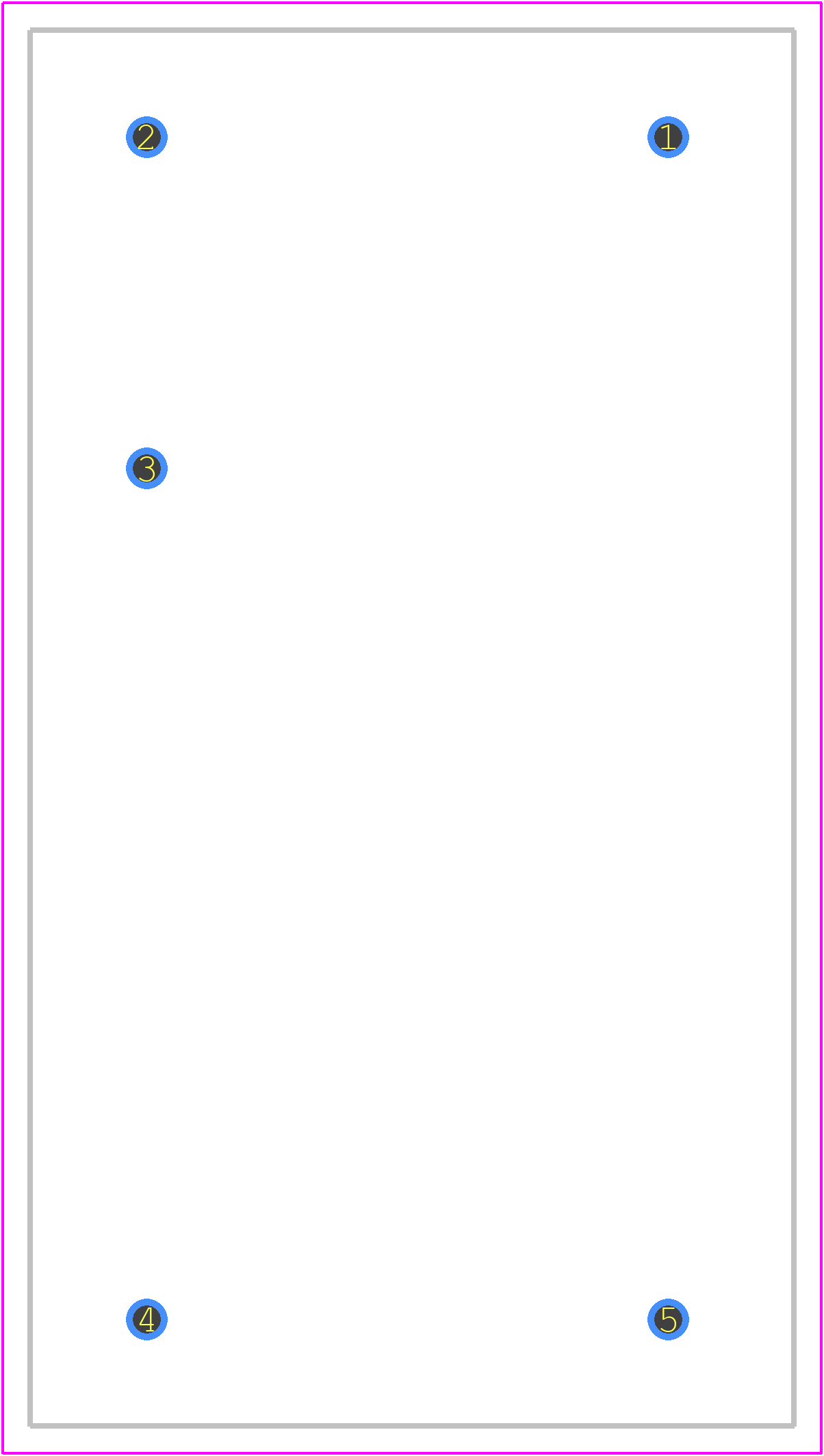

Use the download button to access the FN409-3-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FN409,
or try a keyword search, such as Data Line Filters
