FN409-6.5-02 - Schaffner

Description: Schaffner FN409 Series 6.5A 75 V dc PCB Mount Power Line Filter, with PC Pin Terminals, Single Phase

Download FN409-6.5-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FN409-6.5-02 - Schaffner - PCB symbol
click to zoom
PCB Footprints

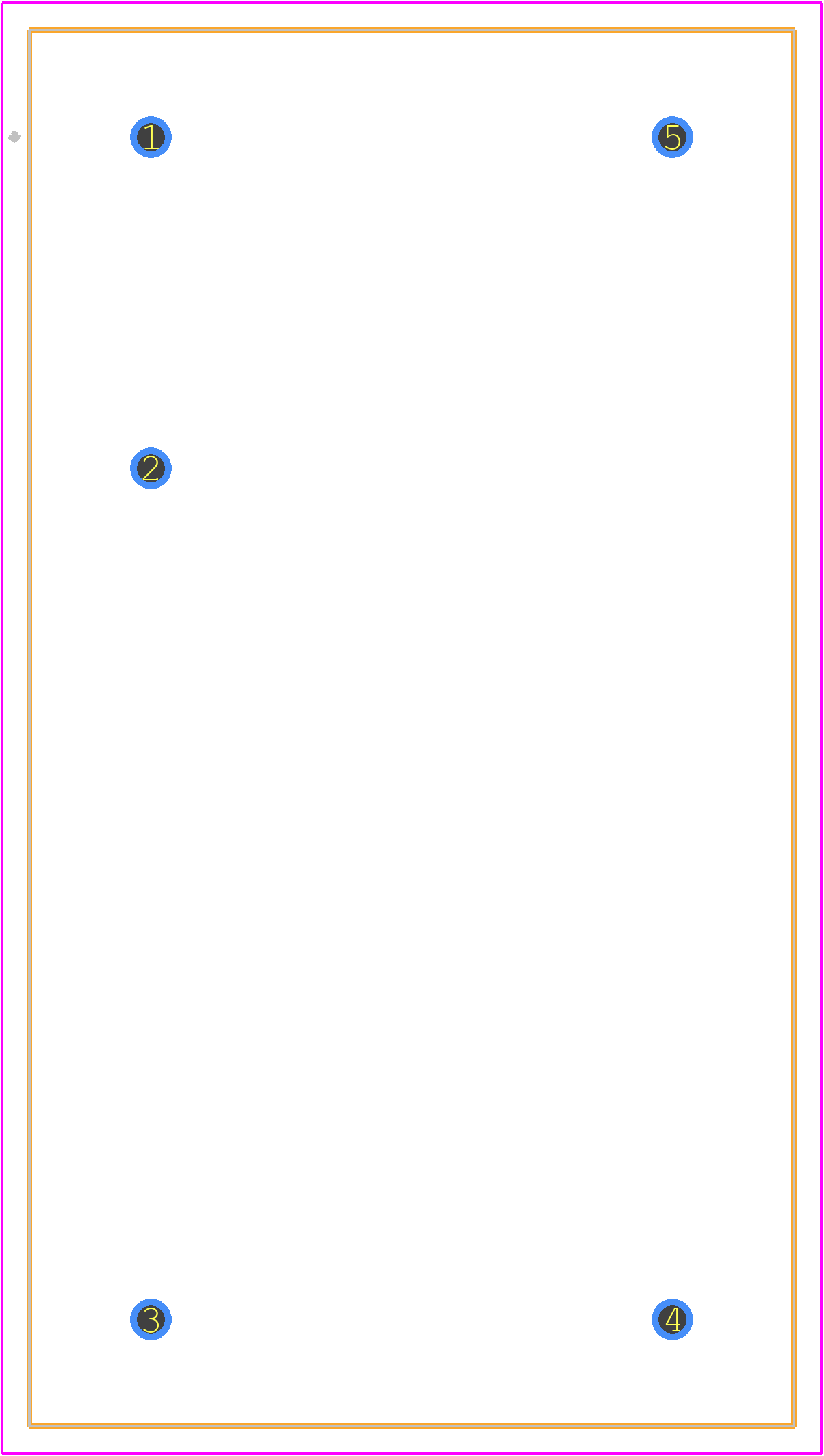

FN409-6.5-02 - Schaffner PCB footprint - Other - Other - FN409-6.5-02-1
click to zoom
3D Models
FN409-6.5-02 - Schaffner - 3D model - Other - FN409-6.5-02-1
click to zoom

FN409-6.5-02 Details

  • Manufacturer Part Number:

    FN409-6.5-02

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    MODULE

  • Pin Count:

    5

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Schaffner

  • YTEOL:

    6

  • Approvals:

    CSA; EN; IEC; SEMKO; UL

  • Capacitance:

    4700000 µF

  • DC Resistance-Max:

    0.018 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    11.7 mm

  • Inductance:

    500 µH

  • Length:

    51 mm

  • Mounting Type:

    PANEL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Current:

    7 A

  • Rated Voltage:

    75 V

  • Width:

    27.9 mm

FN409-6.5-02 Frequently Asked Questions (FAQs)

  • Schaffner recommends a symmetrical layout with the filter's input and output stages separated by a ground plane to minimize electromagnetic interference (EMI).
  • While the FN409-6.5-02 is rated for operation up to 85°C, it's recommended to derate the current by 1.5% per degree above 70°C to ensure reliable operation.
  • Schaffner's FN409-6.5-02 meets various safety certifications, including UL, cUL, and ENEC. Ensure you specify the correct certification for your application during the design phase.
  • Schaffner recommends using the provided screw terminals or soldering the filter directly to the PCB. Avoid using wire wrap or other mechanical connections that may compromise the filter's performance.
  • While the FN409-6.5-02 is designed to handle surge currents, it's essential to ensure the filter is properly sized for the application. Consult Schaffner's application notes for guidance on surge current handling.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FN409-6.5-02 Overview

Use the download button to access the FN409-6.5-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FN409, or try a keyword search, such as Data Line Filters
