FN410-0.5-02 footprint, schematic symbol and 3D model by Schaffner

Symbol

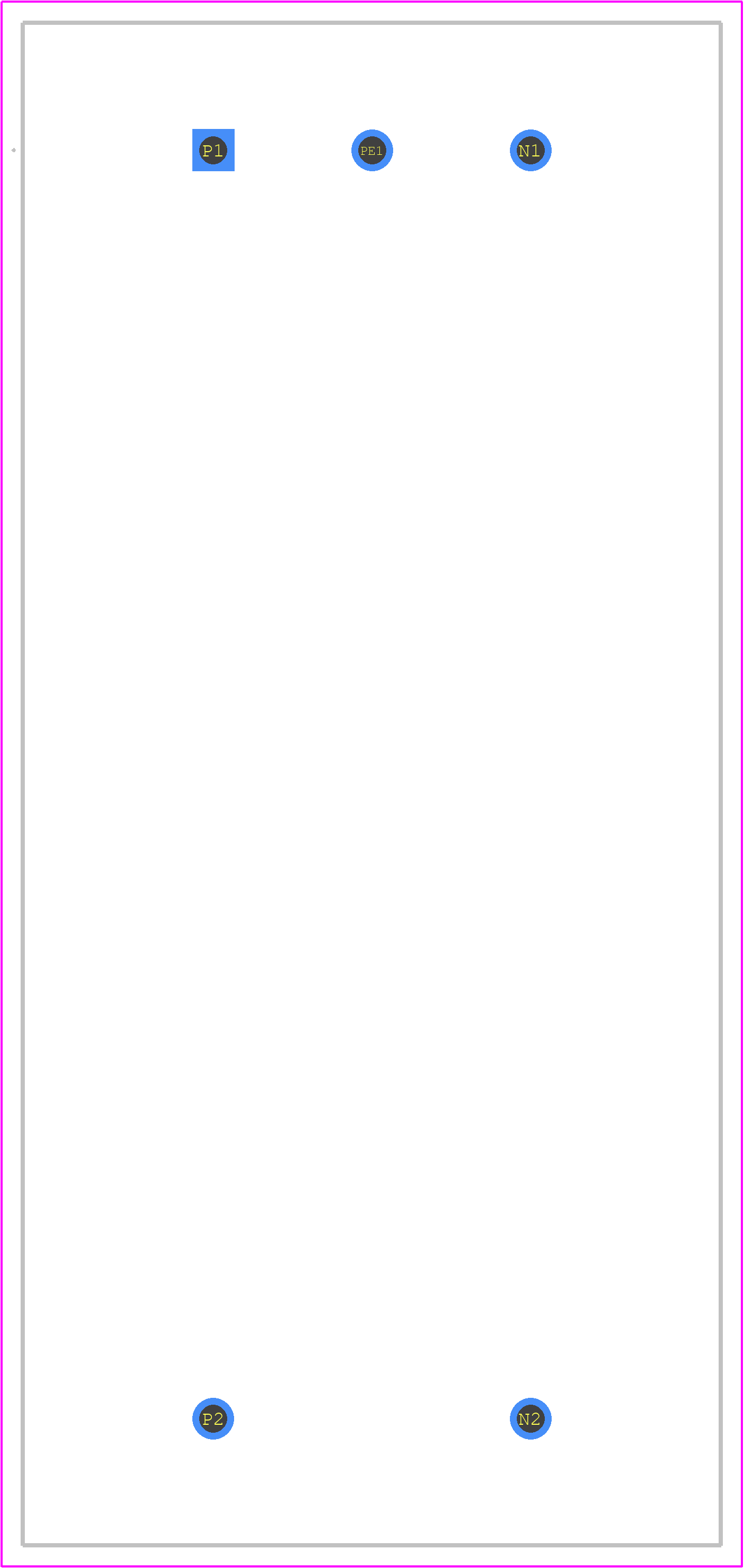

PCB Footprints

3D Models

FN410-0.5-02 Details

The operating temperature range of FN410-0.5-02 is -40°C to +85°C, with a storage temperature range of -40°C to +125°C.
Yes, FN410-0.5-02 is designed to withstand high-vibration environments and meets the vibration test requirements of IEC 60068-2-6.
FN410-0.5-02 has a coating that provides protection against humidity and moisture, but it is not designed for immersion in water. It meets the requirements of IEC 60068-2-30 for humidity testing.
Schaffner recommends a minimum PCB spacing of 1.5 mm between the filter and other components, and a minimum of 2 mm between the filter and the PCB edge. A recommended PCB layout is available in the application notes.
FN410-0.5-02 is designed to withstand surge currents up to 100 A/μs, but it is recommended to consult with Schaffner's application engineers for specific surge current requirements.

Community Provided

System Verified

Community Approved

Use the download button to access the FN410-0.5-02 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FN410, or try a keyword search, such as Mains Filters
