FN410-1-02 footprint, schematic symbol and 3D model by Schaffner

Symbol

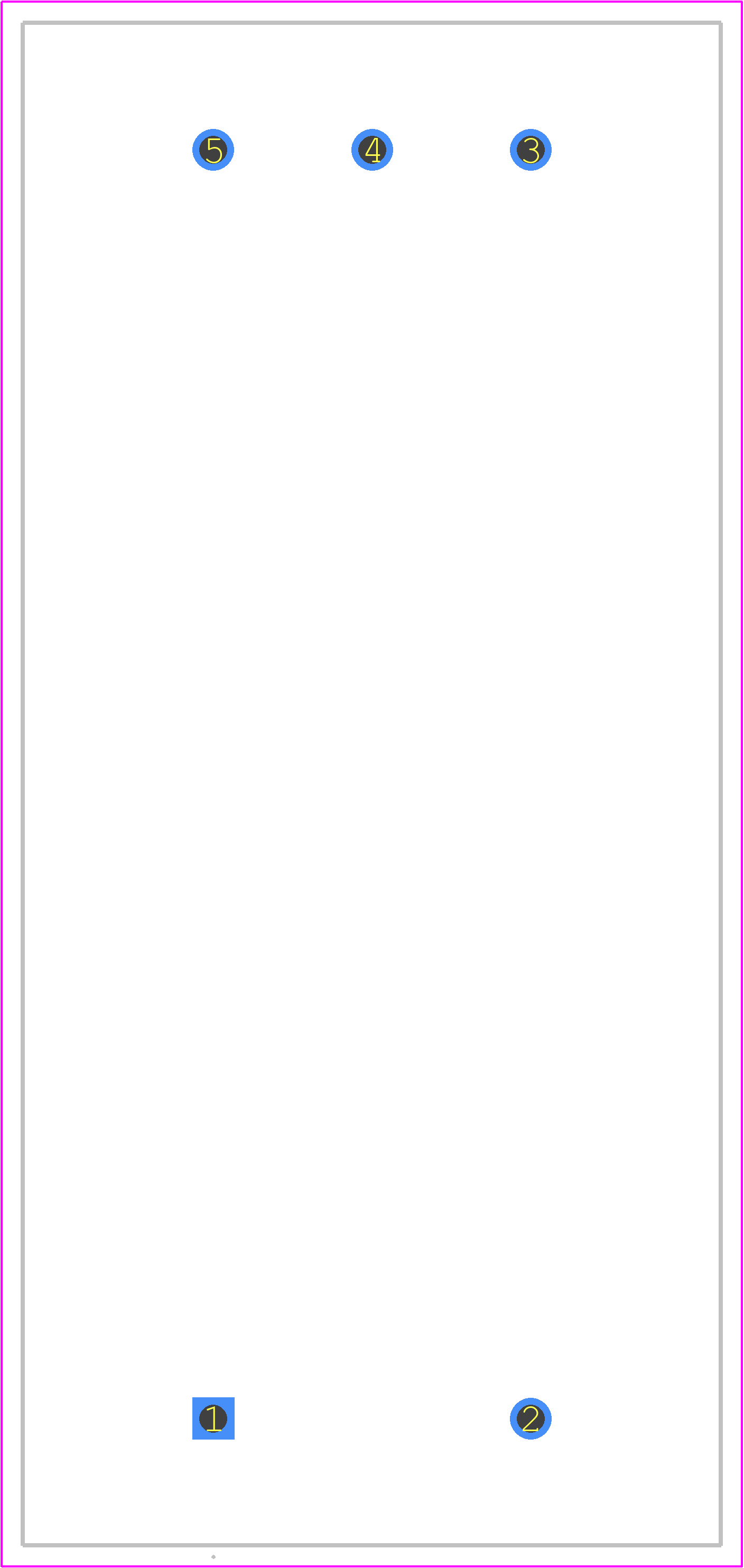

PCB Footprints

3D Models

FN410-1-02 Details

The maximum operating temperature range for the FN410-1-02 is -40°C to +85°C.
Yes, the FN410-1-02 is designed for high-frequency applications up to 1 GHz and is suitable for use in high-speed digital systems.
The typical insertion loss of the FN410-1-02 is less than 1 dB at 100 MHz and less than 2 dB at 1 GHz.
Yes, the FN410-1-02 is designed to meet the requirements of safety-critical applications, including IEC 62368-1 and UL 62368-1.
The maximum current rating of the FN410-1-02 is 10 A.

Community Provided

System Verified

Community Approved

Use the download button to access the FN410-1-02 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FN410, or try a keyword search, such as Mains Filters
