FN410-6-02 - Schaffner

Description: Schaffner FN410 Series 6A 250 V ac DC to 400Hz PCB Mount Power Line Filter, with PC Pin Terminals, Single Phase

Download FN410-6-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FN410-6-02 - Schaffner - PCB symbol
click to zoom
PCB Footprints

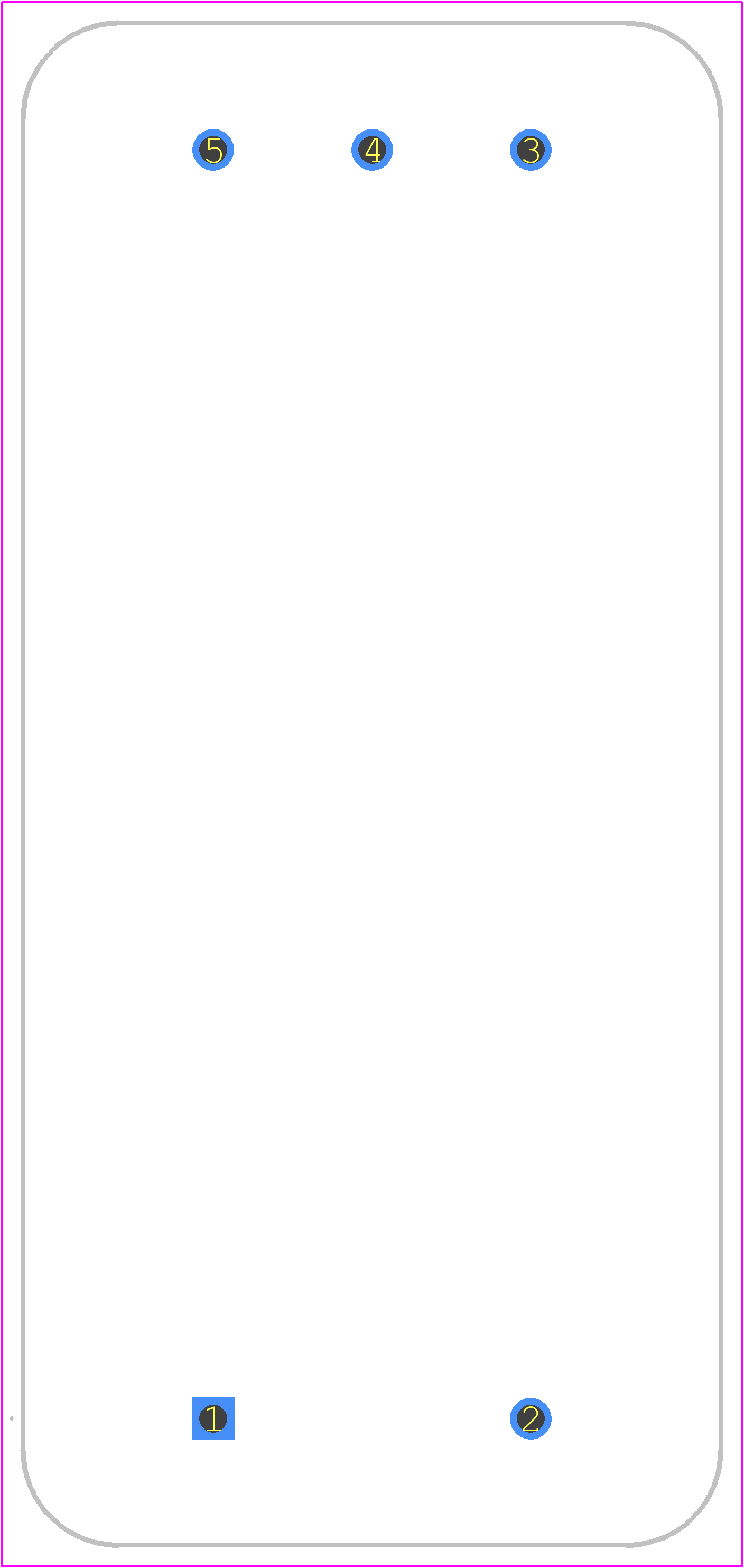

FN410-6-02 - Schaffner PCB footprint - Other - Other - FN410-6-02-3
click to zoom
3D Models
FN410-6-02 - Schaffner - 3D model - Other - FN410-6-02-3
click to zoom

FN410-6-02 Details

  • Manufacturer Part Number:

    FN410-6-02

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Thailand

  • Manufacturer:

    Schaffner

  • YTEOL:

    8.25

  • Additional Feature:

    INDUCTANCE 0.8 MILLI HENRY

  • Approvals:

    UL; CSA; ENEC-14

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    19 mm

  • High Pot:

    2000 V

  • Leakage Current-Max:

    0.373 mA

  • Length:

    72 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency:

    50/60Hz Hz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Rated Current:

    6.9 A

  • Rated Voltage:

    250 V

  • Width:

    33 mm
