Part Image

FN9226-10-02 - Schaffner

Description: Schaffner FN9226 Series 10A 250 V ac 0 → 400Hz PCB Mount EMI Filter, with PC Pin Terminals, Single Phase

Download FN9226-10-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FN9226-10-02 - Schaffner - PCB symbol
click to zoom
PCB Footprints

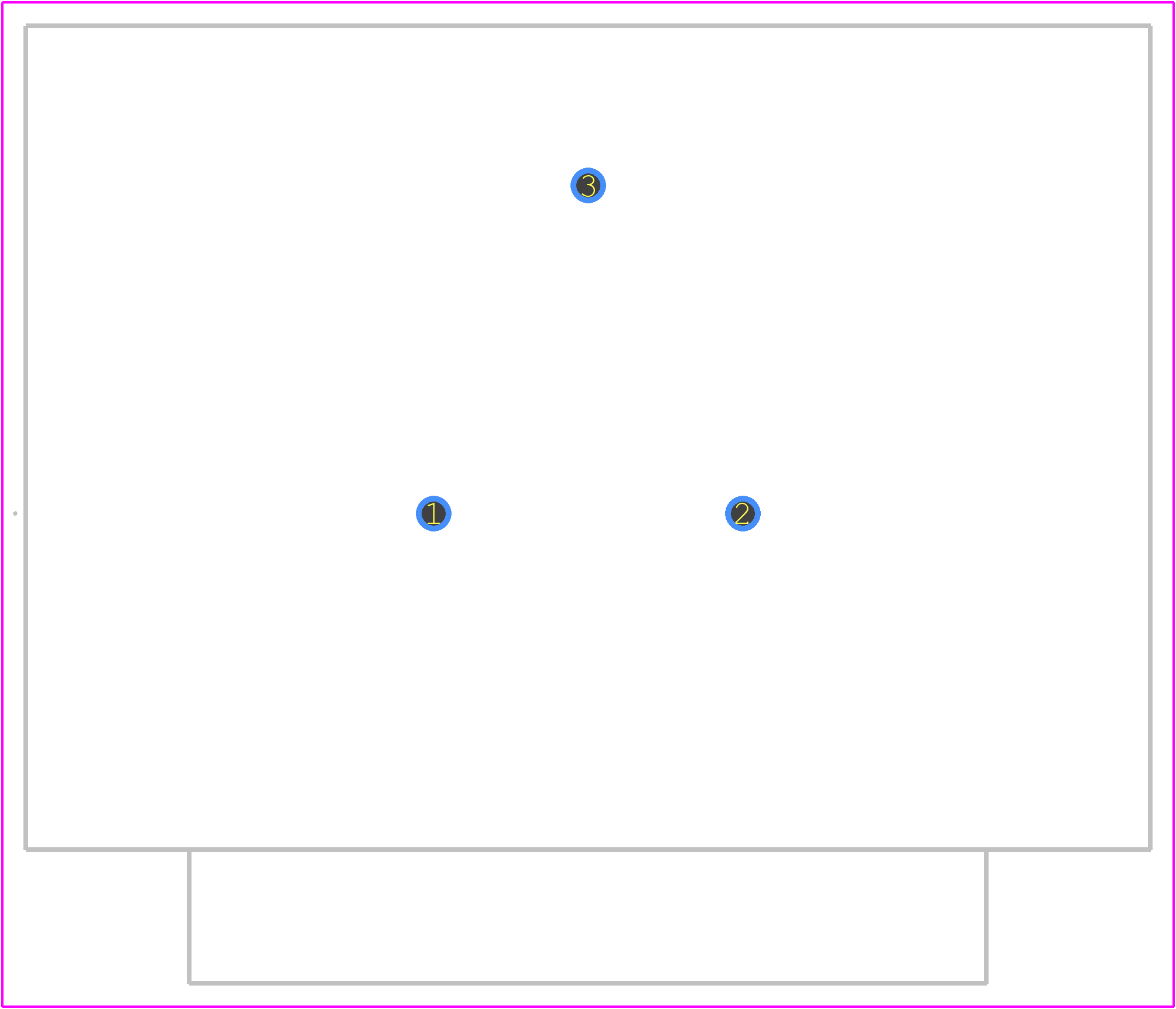

FN9226-10-02 - Schaffner PCB footprint - Other - Other - FN9226-10-02-3
click to zoom
3D Models
FN9226-10-02 - Schaffner - 3D model - Other - FN9226-10-02-3
click to zoom

FN9226-10-02 Details

  • Manufacturer Part Number:

    FN9226-10-02

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Schaffner

  • YTEOL:

    8

  • Additional Feature:

    REFERENCE STANDARD: : ENEC, IEC/EN 60601-1; SEMKO, UL; UKCA

  • Body Breadth:

    0.882 inch

  • Body Depth:

    1.608 inch

  • Body Length:

    1.89 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10A, 250VAC

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CE; CSA

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

FN9226-10-02 Frequently Asked Questions (FAQs)

  • Schaffner recommends a minimum spacing of 2mm between the filter and other components, and a PCB layout that minimizes loop areas and reduces radiation. A good practice is to follow the recommended layout and spacing guidelines provided in the application note or by consulting with Schaffner's technical support team.
  • The FN9226-10-02 is rated for operation up to 80°C, but derating may be necessary for higher temperatures. It's recommended to consult with Schaffner's technical support team to determine the suitable operating temperature range for specific applications.
  • The FN9226-10-02 is designed to provide overvoltage protection up to 2.5 times the rated voltage, and surge protection up to 4kV. However, it's essential to follow the recommended installation and connection guidelines to ensure proper protection.
  • The FN9226-10-02 is designed for frequencies up to 30MHz, but its performance may degrade at higher frequencies. For high-frequency applications, it's recommended to consult with Schaffner's technical support team to determine the suitability of the filter or to explore alternative solutions.
  • The FN9226-10-02 meets the requirements for safety-critical applications, such as IEC 60950-1 and UL 60950-1. However, it's essential to ensure that the filter is used in accordance with the relevant safety standards and guidelines for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FN9226-10-02 Overview

Use the download button to access the FN9226-10-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FN922, or try a keyword search, such as Mains Power Connectors
