FNA25012A - onsemi

Description: 1200 V - 50 A 3-Phase IGBT Inverter, Including Control ICs for Gate Drive and Protections; Low-Loss, Short-Circuit-Rated IGBTs; Very Low Thermal Resistance Using AlN DBC Substrate; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing; Single-Grounded Power Supply Supported; Built-In NTC Thermistor for Temperature Monitoring and Management; Adjustable Over-Current Protection via Integrated Sense-IGBTs; Isolation Ra

Download FNA25012A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

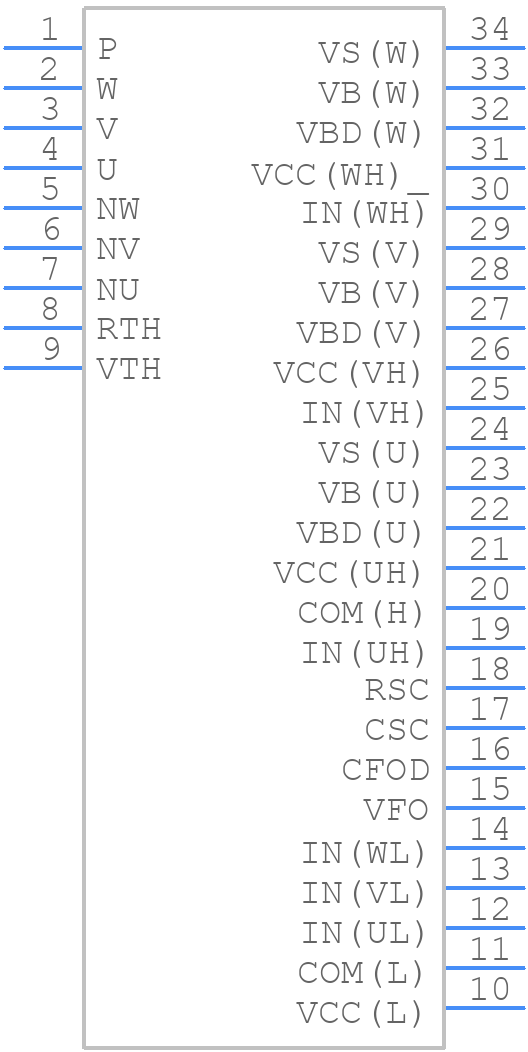

Symbol
FNA25012A - onsemi - PCB symbol
click to zoom

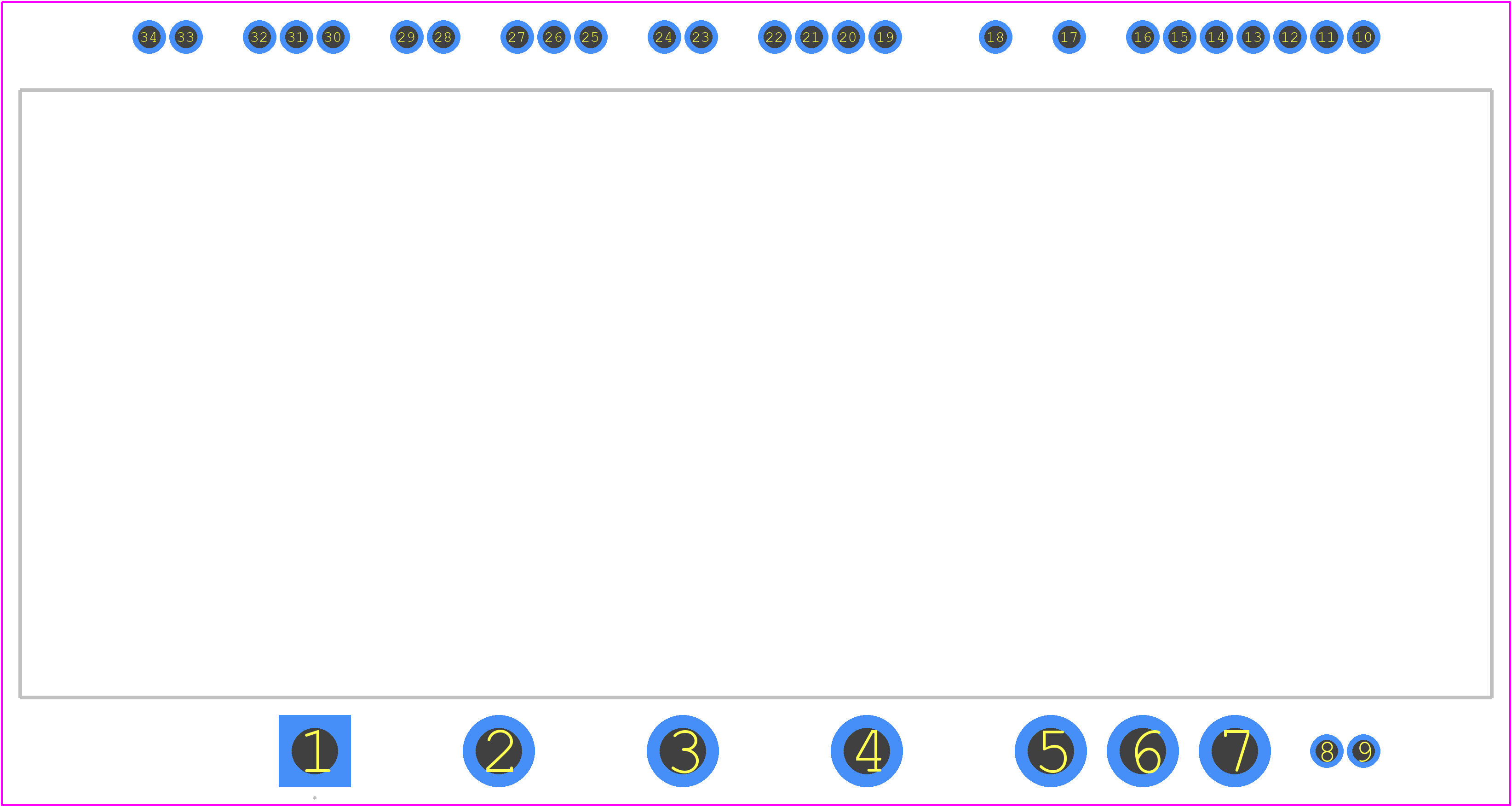

PCB Footprints
FNA25012A - onsemi PCB footprint - Other - Other - FNA25012A-2
click to zoom
3D Models
FNA25012A - onsemi - 3D model - Other - FNA25012A-2
click to zoom

FNA25012A Details

  • Manufacturer Part Number:

    FNA25012A

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP-034

  • Manufacturer Package Code:

    MODFQ

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2018-09-03

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Additional Feature:

    CONTROL SUPPLY VOLTAGE(VCC)= 15V

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDMA-T34

  • JESD-609 Code:

    e3

  • Length:

    80 mm

  • Number of Functions:

    1

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    75 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    9.2 mm

  • Supply Voltage-Max (Vsup):

    800 V

  • Supply Voltage-Min (Vsup):

    300 V

  • Supply Voltage-Nom (Vsup):

    600 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    33 mm

FNA25012A Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
  • The SOA is typically defined by the device's voltage and current ratings. For the FNA25012A, the maximum voltage is 250V and the maximum current is 12A. Operating within these limits ensures safe operation.
  • Use a transient voltage suppressor (TVS) or a metal-oxide varistor (MOV) to protect the device from voltage spikes and surges. Also, ensure proper PCB layout and routing to minimize electromagnetic interference (EMI).
  • A gate drive voltage of 10-15V and a current of 1-2A is recommended for optimal switching performance. However, the specific requirements may vary depending on the application and PCB layout.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FNA25012A Overview

Use the download button to access the FNA25012A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FNA25, or try a keyword search, such as Motion Control Electronics
