FNA25060 - onsemi

Description: 600 V - 50 A 3-Phase IGBT Inverter, Including Control ICs for Gate Drive and Protections; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing; Isolation Rating of 2500 Vrms / 1 min.; Very Low Thermal Resistance Using Al2O3 DBC Substrate; Low-Loss, Short-Circuit-Rated IGBTs; Adjustable Over-Current Protection via Integrated Sense-IGBTs; Built-In NTC Thermistor for Temperature Monitoring and Management; Single-Grou

Download FNA25060 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

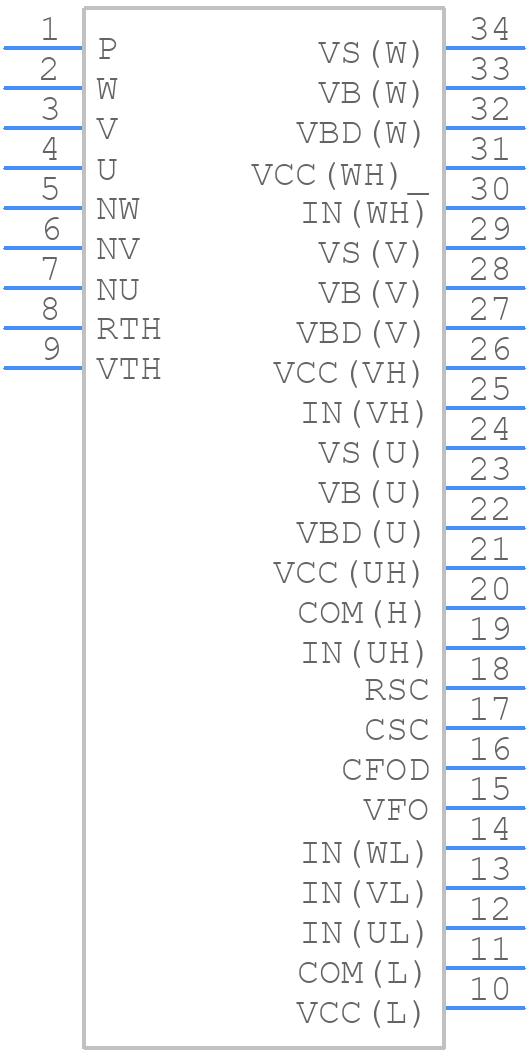

FNA25060 - onsemi - PCB symbol
click to zoom
PCB Footprints

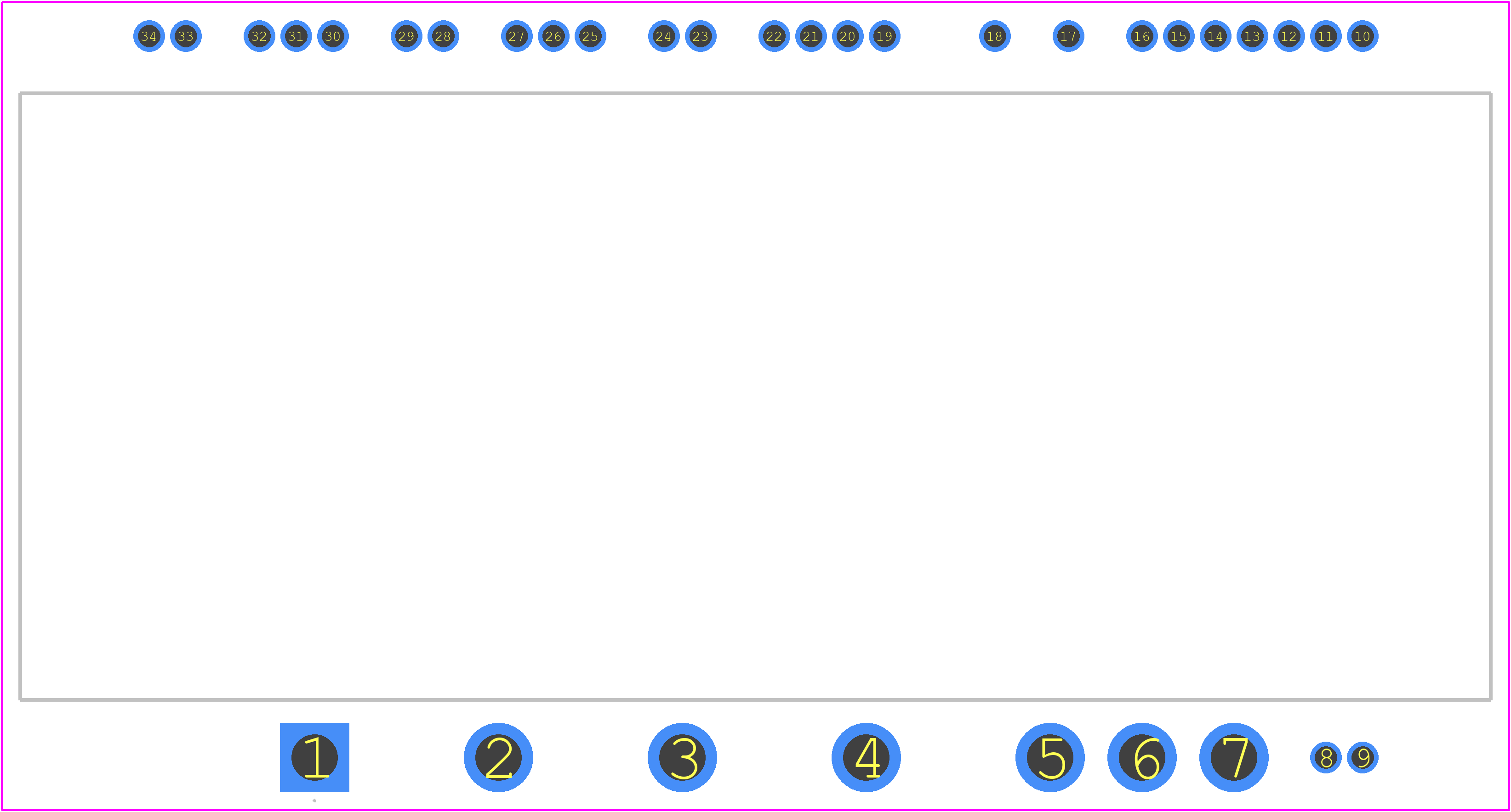

FNA25060 - onsemi PCB footprint - Other - Other - SPMCA−A34 / 34LD, PDD STD, DBC DIP TYPE CASE MODFQ ISSUE O
click to zoom
3D Models
FNA25060 - onsemi - 3D model - Other - SPMCA−A34 / 34LD, PDD STD, DBC DIP TYPE CASE MODFQ ISSUE O
click to zoom

FNA25060 Details

  • Manufacturer Part Number:

    FNA25060

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP-034

  • Package Description:

    Module-34

  • Manufacturer Package Code:

    MODFQ

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDMA-T34

  • JESD-609 Code:

    e3

  • Length:

    80 mm

  • Number of Functions:

    1

  • Number of Terminals:

    34

  • Output Current-Max:

    100 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    8.1 mm

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    33 mm

FNA25060 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature (TJ) and ensure it stays within the recommended range.
  • A 10-22 μF X7R or X5R ceramic capacitor is recommended for the input filter. The capacitor should be placed as close to the device as possible and have a low ESL (Equivalent Series Inductance).
  • Use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input lines. Ensure proper grounding and decoupling of the device.
  • The maximum allowed voltage drop is 0.5 V. Ensure the input voltage is within the recommended range, and the output voltage is within the specified regulation range.
