FNB34060T - onsemi

Description: 600 V - 40 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection; Low-Loss, Short-Circuit Rated IGBTs; LVIC Temperature-Sensing Built-In for Temperature Monitoring; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Very Low Thermal Resistance using Al2O3 DBC Substrate; Single-Grounded Power Supply; Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing; Isolation Rating: 2500 Vrms / 1 min.

Download FNB34060T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

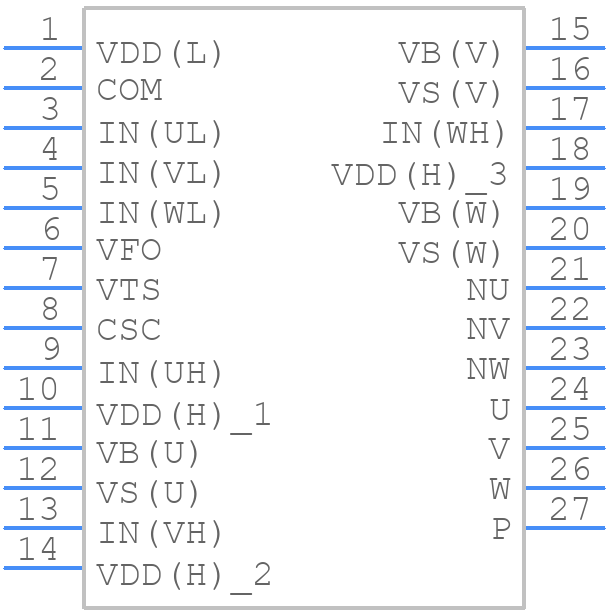

Symbol
FNB34060T - onsemi - PCB symbol
click to zoom

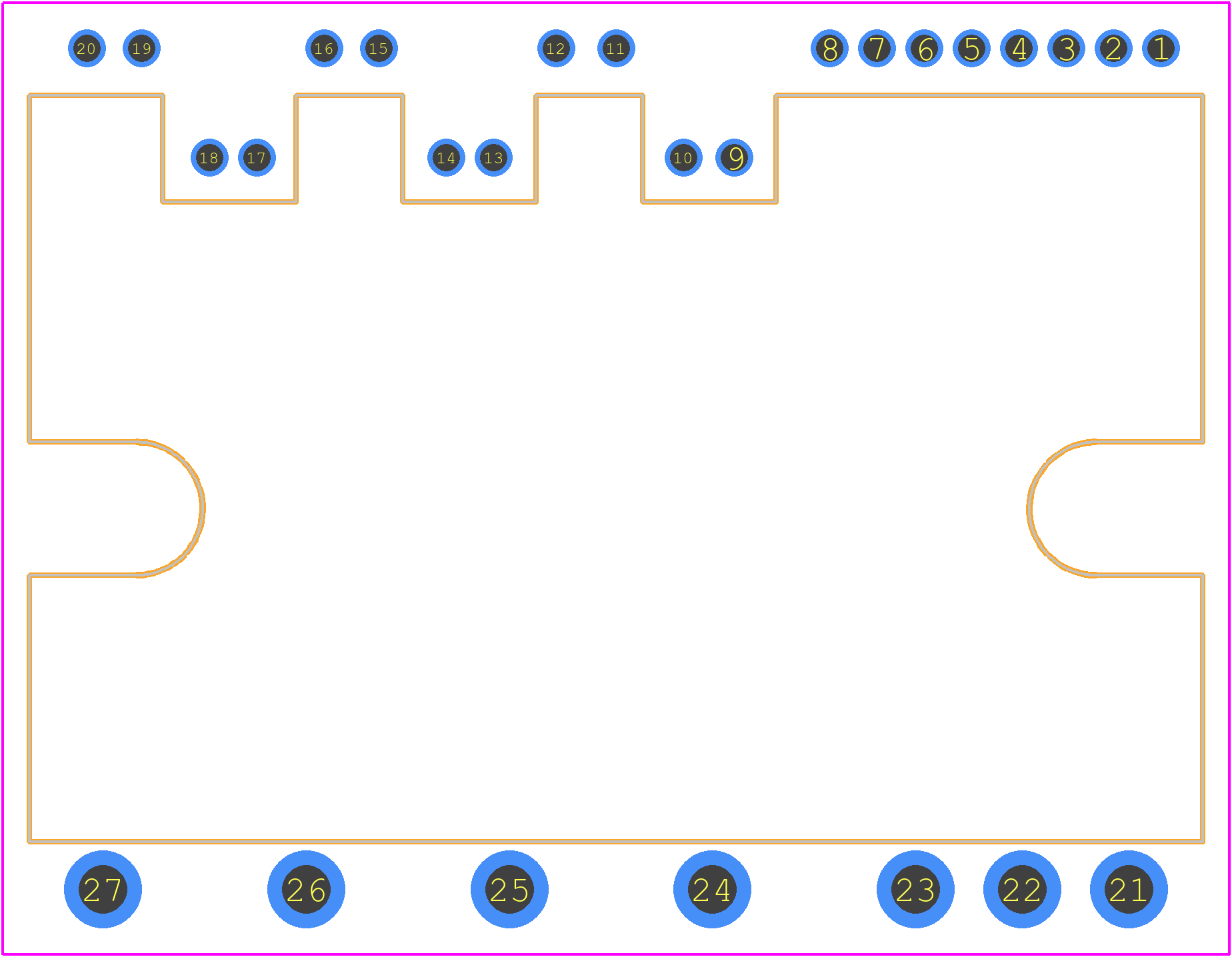

PCB Footprints
FNB34060T - onsemi PCB footprint - Other - Other - SPMMF-027
click to zoom
3D Models
FNB34060T - onsemi - 3D model - Other - SPMMF-027
click to zoom

FNB34060T Details

  • Manufacturer Part Number:

    FNB34060T

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP-027

  • Package Description:

    SPM-27

  • Manufacturer Package Code:

    MODFJ

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDFM-T27

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    27

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    80 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

FNB34060T Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the device's junction temperature (TJ) and adjust the operating conditions accordingly.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7 μF to 10 μF is recommended. The capacitor should be placed close to the VIN pin to minimize noise and ensure stable operation.
  • Use a shielded inductor, keep the layout compact, and minimize loop areas. Ensure proper grounding and decoupling, and consider adding EMI filters or shielding to the PCB design.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 10 μF to 22 μF is recommended. The capacitor should be placed close to the VOUT pin to minimize noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FNB34060T Overview

Use the download button to access the FNB34060T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FNB34, or try a keyword search, such as Motion Control Electronics
