FNB41560 - onsemi

Description: Single-grounded power supply with bootstrap operations; Isolation rating of 2000Vrms/min.; Built-in thermistor for temperature monitoring; Three separate open-emitter pins from low side IGBTs for three leg current sensing; 600V, 15A 3-phase IGBT inverter including control ICs for gate drive and protections; Easy PCB layout thanks to the built-in bootstrap diodes and the dedicated Vs pins

Download FNB41560 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

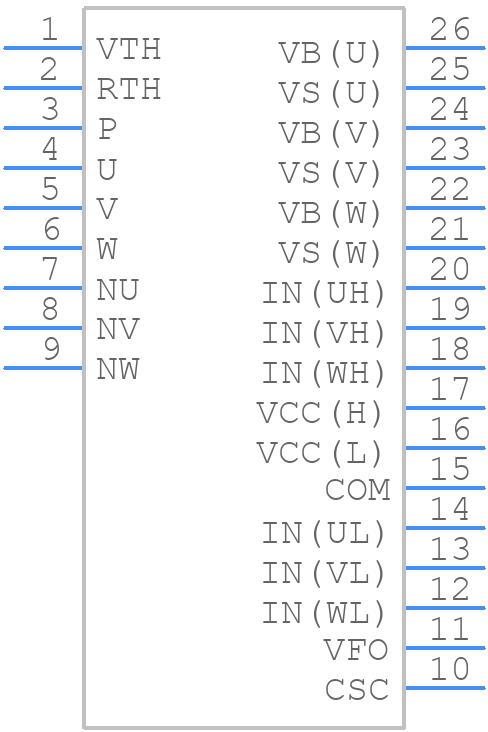

Symbol
FNB41560 - onsemi - PCB symbol
click to zoom

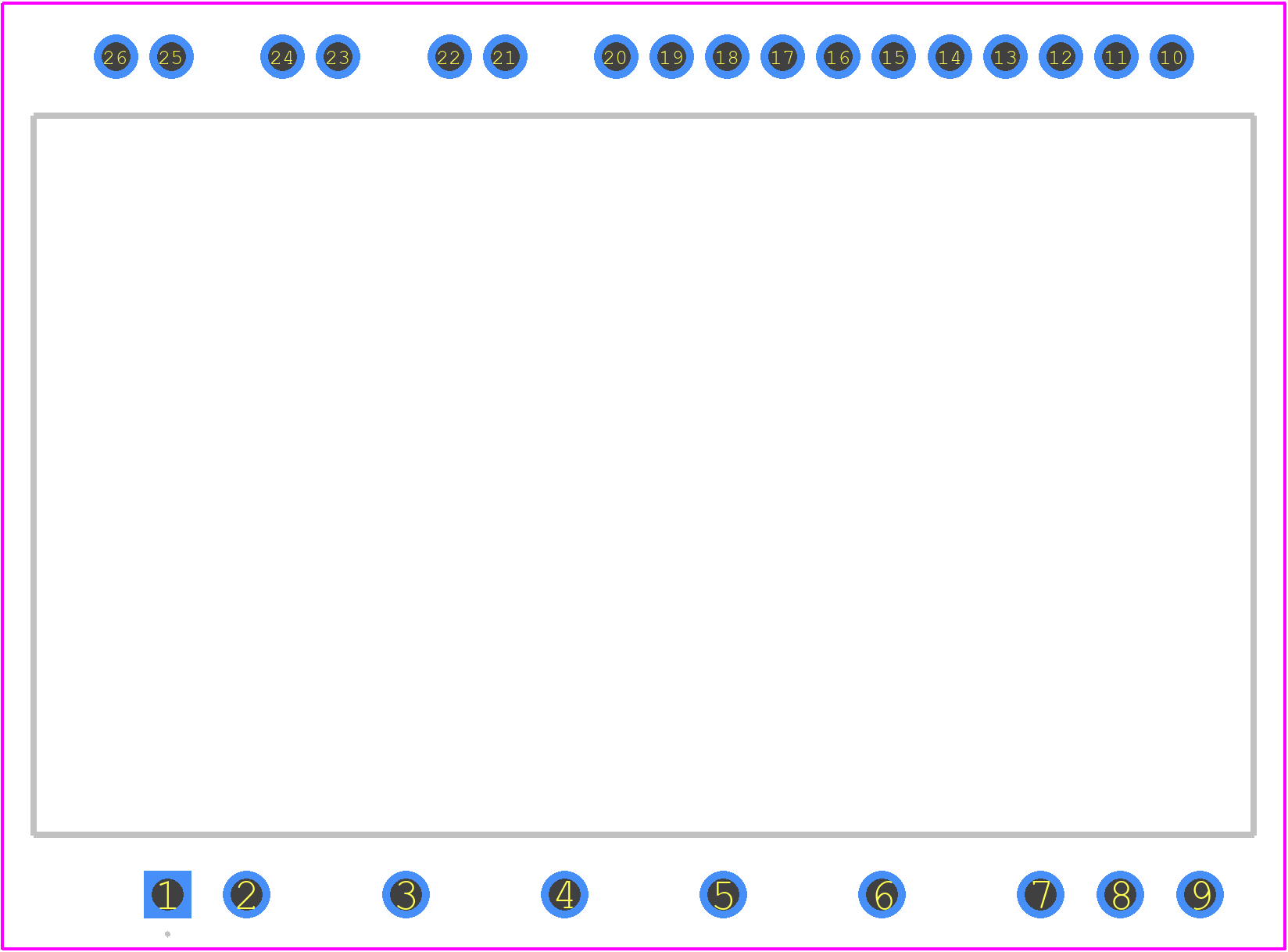

PCB Footprints
FNB41560 - onsemi PCB footprint - Other - Other - FNB41560-3
click to zoom
3D Models
FNB41560 - onsemi - 3D model - Other - FNB41560-3
click to zoom

FNB41560 Details

  • Manufacturer Part Number:

    FNB41560

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    CDIP-026

  • Package Description:

    SPM-26

  • Manufacturer Package Code:

    MODFA

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDFM-T26

  • JESD-609 Code:

    e3

  • Length:

    39 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Output Current-Max:

    22 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Equivalence Code:

    MODULE,26LEAD,1.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.5 mm

  • Supply Current-Max (Isup):

    3.65 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    23 mm

FNB41560 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
  • Monitor the device's current, voltage, and temperature. Implement overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown (TSD) to prevent damage and ensure safe operation.
  • Use a gate driver with a high current capability (>1A) and a low output impedance. Ensure the gate drive circuit is properly decoupled and has a low inductance path to the device.
  • A dead time of 100-200 ns is recommended to prevent shoot-through and ensure reliable operation. However, the optimal dead time may vary depending on the specific application and system design.
