FNB43060T2 - onsemi

Description: UL Certified No. E209204 (UL1557); Low−Loss, Short−Circuit Rated IGBTs; Built−In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Built−In NTC Thermistor for Temperature Monitoring; Separate Open−Emitter Pins from Low−Side IGBTs for Three−Phase Current Sensing; Low Thermal Resistance Using Ceramic Substrate; 600 V − 30 A 3−Phase IGBT Inverter with Integral Gate Drivers and Protection; Single−Grounded Power Supply; Isolation Rating: 2000 Vrms/ min.

Download FNB43060T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

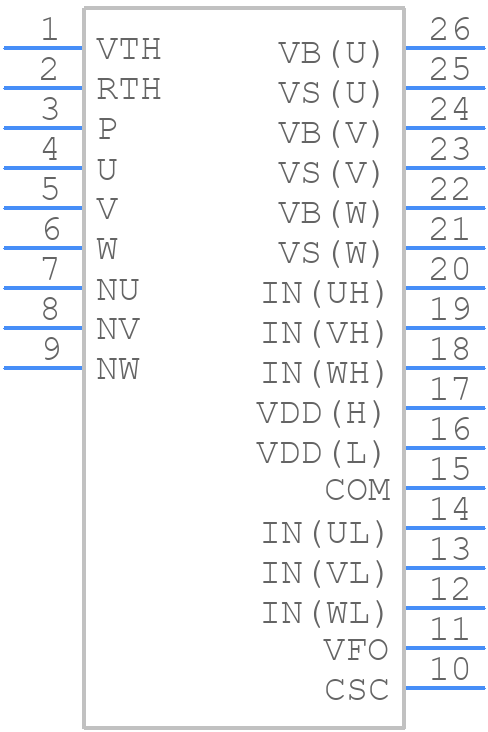

FNB43060T2 - onsemi - PCB symbol
click to zoom
PCB Footprints

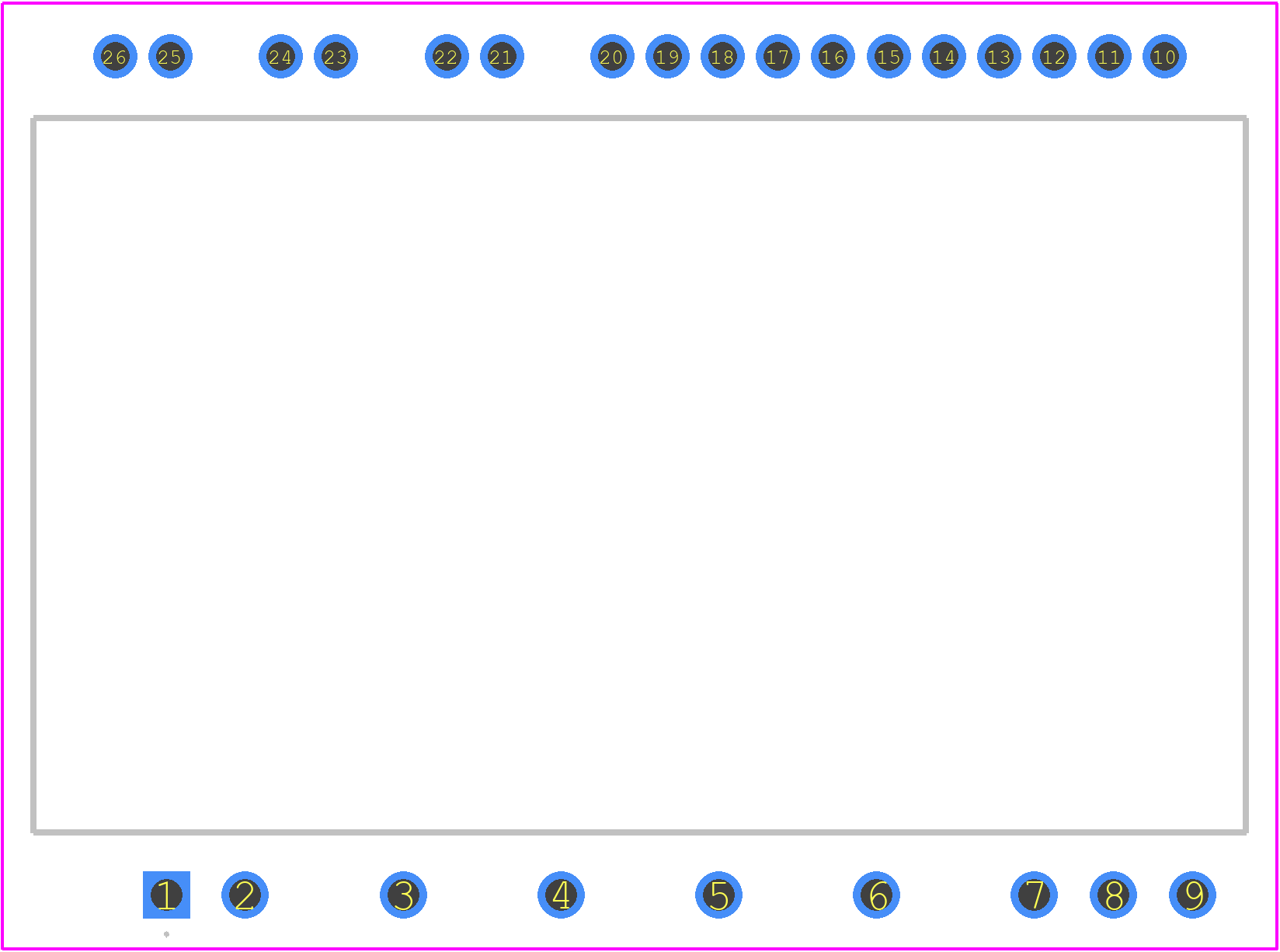

FNB43060T2 - onsemi PCB footprint - Other - Other - SPMAA−C26 / 26LD, PDD STD CERAMIC TYPE, LONG LEAD DUAL FORM TYPE CASE MODFC
click to zoom
3D Models
FNB43060T2 - onsemi - 3D model - Other - SPMAA−C26 / 26LD, PDD STD CERAMIC TYPE, LONG LEAD DUAL FORM TYPE CASE MODFC
click to zoom

FNB43060T2 Details

  • Manufacturer Part Number:

    FNB43060T2

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CDIP-026

  • Package Description:

    SPM-26

  • Manufacturer Package Code:

    MODFC

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • Additional Feature:

    CONTROL SUPPLY VOLTAGE(VCC)= 15V

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDFM-T26

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    60 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    400 V

  • Supply Voltage-Nom (Vsup):

    300 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

FNB43060T2 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the device's junction temperature (TJ) and adjust the operating conditions accordingly.
  • The maximum allowed voltage on the VIN pin is 36V, but it's recommended to keep it below 30V for reliable operation and to prevent damage to the internal voltage regulator.
  • Yes, the FNB43060T2 is designed for high-reliability applications. However, it's essential to follow proper design and manufacturing guidelines, and to implement adequate fault detection and correction mechanisms.
  • Use a systematic approach to troubleshoot issues. Check the power supply, input voltage, and output voltage. Verify the PCB layout and thermal design. Consult the datasheet and application notes for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FNB43060T2 Overview

Use the download button to access the FNB43060T2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FNB43, or try a keyword search, such as Motion Control Electronics
