Description:Easy PCB Layout Thanks to The Built - In Bootstrap Diodes and The Dedicated Vs Pins; 600 V, 20 A 3 - Phase IGBT Inverter Including Control ICs for Gate Drive and Protections; Isolation Rating of 2000 Vrms / min.; Built - In NTC Thermistor for Over Temperature Monitoring; UL Certified No. E209204; Single - Grounded Power Supply with Bootstrap Operations; Three Separate Open - Emitter Pins from Low Side IGBTs for Three Leg Current Sensing
A good PCB layout should ensure minimal thermal resistance, use a solid ground plane, and keep high-current paths short. A thermal design with a heat sink and thermal interface material can help reduce junction temperature.
To minimize latch-up risk, ensure proper power sequencing, use a slow turn-on and turn-off of the power supply, and add a latch-up protection circuit if necessary. Also, follow the recommended operating conditions and avoid exceeding the maximum ratings.
To ensure EMI and EMC compliance, use a shielded layout, minimize loop areas, and add EMI filters or chokes as needed. Also, follow the recommended layout and grounding practices, and consider using a common-mode choke or EMI filter at the input.
Select input capacitors with a suitable voltage rating, low ESR, and high ripple current capability. Consider the operating frequency, input voltage, and output current when selecting the capacitor value and type.
Implement thermal monitoring using a thermistor or thermocouple, and add over-temperature protection (OTP) to prevent damage. Set the OTP threshold based on the maximum junction temperature rating and the expected operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FNC42060F2 Overview

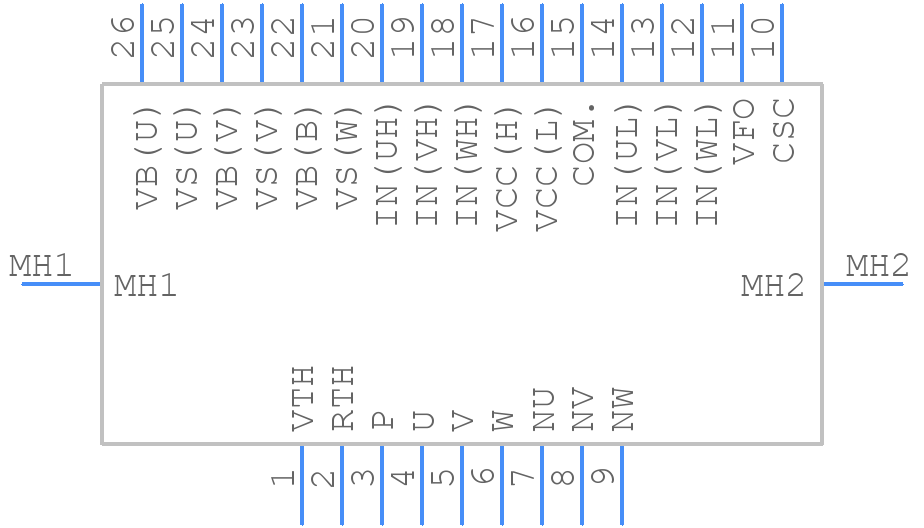

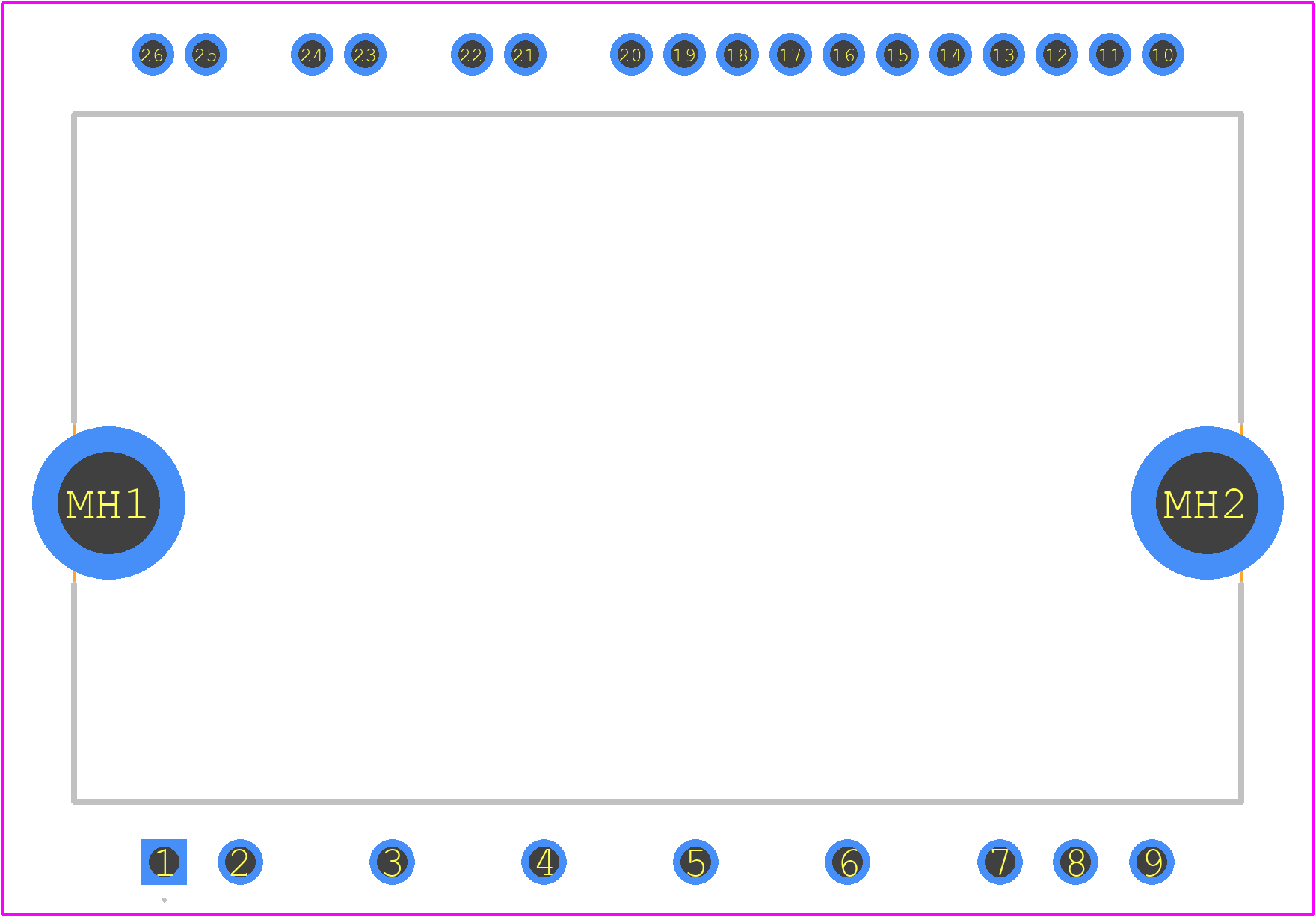

Use the download button to access the FNC42060F2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FNC42,
or try a keyword search, such as Motion Control Electronics
