A good PCB layout for FOD260L should ensure minimal lead inductance, use a solid ground plane, and keep the photodiode and emitter as close as possible to minimize stray capacitance. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range, use a suitable thermal interface material, and provide adequate heat sinking. Additionally, consider derating the device's current and voltage ratings according to the temperature derating curve.
A recommended drive circuit for FOD260L is a low-impedance driver with a series resistor to limit the current. The driver should be able to provide a fast rise and fall time to minimize the turn-on and turn-off times of the optocoupler. A buffer stage may be necessary to ensure a clean drive signal.
The input capacitance of FOD260L can be handled by using a series resistor to limit the current, and a bypass capacitor to filter out high-frequency noise. Additionally, consider using a low-capacitance driver or a buffer stage to minimize the effect of input capacitance on the signal.
For testing and debugging FOD260L-based designs, use a logic analyzer or an oscilloscope to monitor the input and output signals. Verify the correct operation of the optocoupler by checking the output voltage and current levels. Use a fault injection technique to simulate faults and verify the design's robustness.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FOD260L Overview

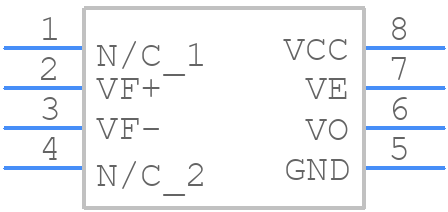

Use the download button to access the FOD260L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD26,
or try a keyword search, such as Optocoupler
