A good PCB layout for FOD2741AS involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input pins (IN+ and IN-) should be biased to a voltage between 0V and VCC, and the output pins (OUT+ and OUT-) should be biased to a voltage between 0V and VCC/2.
The maximum allowable voltage on the input pins (IN+ and IN-) is VCC + 0.5V, which is 5.5V for a 5V power supply. Exceeding this voltage may damage the device.
FOD2741AS is rated for operation up to 85°C ambient temperature. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C. Proper thermal management and heat sinking may be required for high-temperature applications.
To troubleshoot issues with FOD2741AS, check the PCB layout for parasitic inductance and capacitance, ensure proper biasing and power supply decoupling, and verify that the input and output pins are not overloaded. Use an oscilloscope to measure the output voltage and current, and check for signs of oscillation or ringing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FOD2741AS Overview

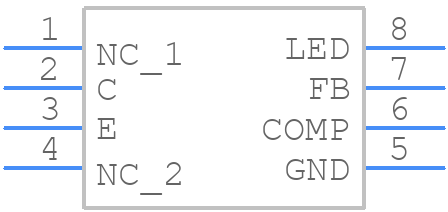

Use the download button to access the FOD2741AS schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD27,
or try a keyword search, such as Optocoupler
