Part Image

FOD2741BTV - onsemi

Description: 5,000V RMS isolation; UL approved E90700, Volume 2; CSA approval 1296837; VDE approval 40002463; BSI approval 8702, 8703; CTR 100% to 200%; 2.5V reference; FOD2741A: tolerance 0.5%; FOD2741B: tolerance 1%; FOD2741C: tolerance 2%; Low temperature coefficient 50 ppm/°C max; Optocoupler, precision reference and error amplifier in single package

Download FOD2741BTV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

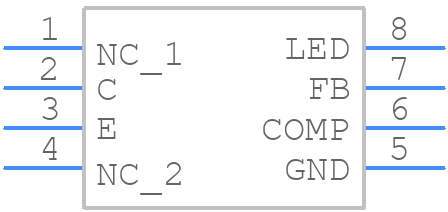

Symbol
FOD2741BTV - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD2741BTV - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PDIP
click to zoom
3D Models
FOD2741BTV - onsemi - 3D model - Dual-In-Line Packages - 8 PDIP
click to zoom

FOD2741BTV Details

  • Manufacturer Part Number:

    FOD2741BTV

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646BW

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.085 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD2741BTV Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD2741BTV should minimize parasitic inductance and capacitance. Keep the input and output traces short and separate, use a solid ground plane, and avoid vias under the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The EN pin should be tied to a logic high (VCC) to enable the device. The input pins (IN+ and IN-) should be biased to a voltage within the recommended common-mode range (0.5V to 4.5V).
  • The maximum allowable current through the output pins (OUT+ and OUT-) of the FOD2741BTV is ±10mA. Exceeding this limit may cause damage to the device or affect its performance.
  • The FOD2741BTV has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • The recommended operating temperature range for the FOD2741BTV is -40°C to +125°C. Operating the device outside this range may affect its performance, reliability, or lifespan.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD2741BTV Overview

Use the download button to access the FOD2741BTV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD27, or try a keyword search, such as Optocoupler
