FOD2742B - onsemi

Description: 2.5V reference; CTR 100% to 200%; Low temperature coefficient 50 ppm/°C max; UL approval E90700; 2,500V RMS isolation; VDE approval 136616; CSA approval 1113643; BSI approval 8661, 8662; FOD2742A: tolerance 0.5%; FOD2742B: tolerance 1%; FOD2742C: tolerance 2%; Optocoupler, precision reference and error amplifier in single package

Download FOD2742B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

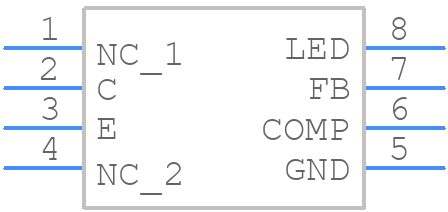

FOD2742B - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD2742B - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOIC
click to zoom
3D Models
FOD2742B - onsemi - 3D model - Small Outline Packages - 8-Lead SOIC
click to zoom

FOD2742B Details

  • Manufacturer Part Number:

    FOD2742B

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.085 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed
