FOD410 - onsemi

Description: 600V (FOD410, FOD4116) ; 1.3mA (FOD4116, FOD4118) ; 300mA on-state current; 800V (FOD4108, FOD4118) ; UL, VDE, CSA approved; High blocking voltage ; 2mA (FOD410, FOD4108) ; Zero-voltage crossing; High static dv/dt (10,000V/µs); Lead free assembly; High trigger sensitivity

Download FOD410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

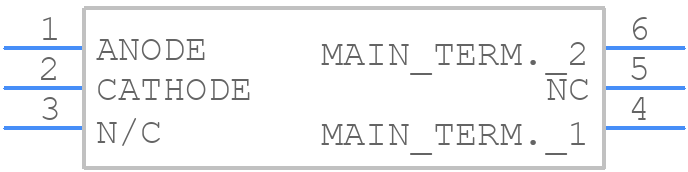

FOD410 - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD410 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - FOD4208
click to zoom
3D Models
FOD410 - onsemi - 3D model - Dual-In-Line Packages - FOD4208
click to zoom

FOD410 Details

  • Manufacturer Part Number:

    FOD410

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6 GW

  • Manufacturer Package Code:

    709AG

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.03 A

  • Input Trigger Current-Max:

    0.002 A

  • Input Trigger Current-Nom:

    0.65 mA

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.07 A

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Packing Method:

    TUBE

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    3 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD410 Frequently Asked Questions (FAQs)

  • A good PCB layout for FOD410 involves keeping the input and output traces short and separate, using a ground plane, and placing the device close to the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input pins (IN+ and IN-) should be biased to a voltage between 0V and VCC, and the output pins (OUT+ and OUT-) should be biased to a voltage between 0V and VCC/2.
  • The maximum allowable voltage on the input pins (IN+ and IN-) is VCC + 0.5V. Exceeding this voltage may damage the device.
  • FOD410 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and avoid touching the device's pins or exposed metal parts.
  • The typical propagation delay of FOD410 is around 10ns to 20ns, depending on the input signal frequency and amplitude. However, this value can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD410 Overview

Use the download button to access the FOD410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD41, or try a keyword search, such as Optocoupler
