FOD8012A - onsemi

Description: Half Duplex, Bi-Directional; 20 kV/μs Minimum Common Mode Rejection; High Speed: – 15 Mbit/sec Data Rate (NRZ) – 60 ns Maximum Propagation Delay – 15 ns Maximum Pulse Width Distortion – 30 ns Maximum Propagation Delay Skew; 3.3 V and 5 V CMOS Compatibility; Extended Industrial Temperate Range, -40 to +110°C; Safety and Regulatory Approvals – UL1577, 3750 VACRMS for 1 min. – DIN EN/IEC60747-5-5

Download FOD8012A Model

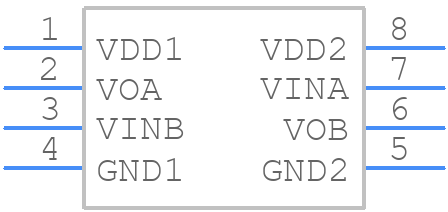

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD8012A - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-SO TALL
click to zoom
3D Models
FOD8012A - onsemi  - 3D model - Small Outline Packages - 8-SO TALL
click to zoom

FOD8012A Details

  • Manufacturer Part Number:

    FOD8012A

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    CMOS COMPATIBILITY

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    1.875 MBps

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.01 A

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Max:

    6e-8 s

  • Response Time-Nom:

    4e-8 ns

  • Shape:

    RECTANGULAR

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD8012A Frequently Asked Questions (FAQs)

  • A good PCB layout for FOD8012A involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 0.5V to 2.5V.
  • The FOD8012A can sink or source up to 10mA of current, making it suitable for driving small loads such as LEDs or logic gates.
  • To troubleshoot issues with the FOD8012A, check the power supply voltage, input voltage levels, and PCB layout for any errors or noise. Use an oscilloscope to verify the input and output waveforms, and consult the datasheet for specific troubleshooting guidelines.
  • The FOD8012A is rated for operation up to 85°C, but it's recommended to derate the device for high-temperature applications. Consult the datasheet for specific temperature derating guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD8012A Overview

Use the download button to access the FOD8012A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD80, or try a keyword search, such as Optocoupler
