Part Image

FOD8012AR2 - onsemi

Description: Half Duplex, Bi-Directional; 20 kV/μs Minimum Common Mode Rejection; High Speed: – 15 Mbit/sec Data Rate (NRZ) – 60 ns Maximum Propagation Delay – 15 ns Maximum Pulse Width Distortion – 30 ns Maximum Propagation Delay Skew; 3.3 V and 5 V CMOS Compatibility; Extended Industrial Temperate Range, -40 to +110°C; Safety and Regulatory Approvals – UL1577, 3750 VACRMS for 1 min. – DIN EN/IEC60747-5-5

Download FOD8012AR2 Model

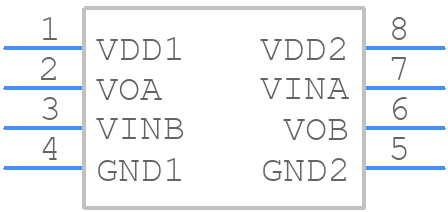

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD8012AR2 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - FOD8012AR2
click to zoom
3D Models
FOD8012AR2 - onsemi  - 3D model - Small Outline Packages - FOD8012AR2
click to zoom

FOD8012AR2 Details

  • Manufacturer Part Number:

    FOD8012AR2

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    CMOS COMPATIBILITY

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    1.875 MBps

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.01 A

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Response Time-Max:

    6e-8 s

  • Response Time-Nom:

    4e-8 ns

  • Shape:

    RECTANGULAR

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD8012AR2 Frequently Asked Questions (FAQs)

  • A good PCB layout for FOD8012AR2 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 0.5V to 2.5V.
  • The FOD8012AR2 can sink or source up to 10mA of current, making it suitable for driving small loads such as LEDs or logic gates.
  • When the FOD8012AR2 is not in use, it's recommended to tri-state the output by setting the OE (output enable) pin low. This prevents the output from floating and reduces power consumption.
  • The FOD8012AR2 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits that prevent damage to the device in case of voltage fluctuations. However, it's still recommended to use external protection circuits for added safety.
