FOD8316R2V - onsemi

Description: Wide supply voltage range from 15V to 30V; 2.5A peak output current driving capability for most 1200V/150A IGBT; User configurable: inverting, non-inverting, auto-reset, auto-shutdown; Under voltage lockout protection; 3.3V/5V, CMOS/TTL compatible inputs; High Speed; 1,414V (peak) working voltage rating; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); RDS(ON) of 1 Ω (typ.) offers lower power dissipation; 8mm creepage and clearance distanc

Download FOD8316R2V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

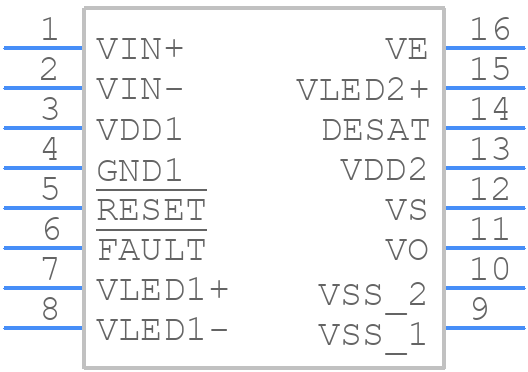

FOD8316R2V - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD8316R2V - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16 W CASE 751EN ISSUE O
click to zoom
3D Models
FOD8316R2V - onsemi - 3D model - Small Outline Packages - SOIC16 W CASE 751EN ISSUE O
click to zoom

FOD8316R2V Details

  • Manufacturer Part Number:

    FOD8316R2V

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC16 W

  • Package Description:

    SOP-16

  • Manufacturer Package Code:

    751EN

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.312 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    3.911 mm

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.5 µs

  • Turn-on Time:

    0.5 µs

  • Width:

    7.493 mm

FOD8316R2V Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD8316R2V involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The EN pin should be tied to a logic high (VCC) to enable the device. Additionally, decouple the VCC pin with a 0.1uF ceramic capacitor to reduce noise and ensure stable operation.
  • The FOD8316R2V has a maximum current rating of 1A per channel, with a total current rating of 2A for both channels combined. However, it's recommended to derate the current to 0.8A per channel for reliable operation.
  • To protect the FOD8316R2V from overvoltage and overcurrent conditions, use a voltage regulator to regulate the input voltage to 5V, and add a current-limiting resistor in series with the output to prevent excessive current draw. Additionally, consider adding overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the device.
  • The recommended operating temperature range for the FOD8316R2V is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD8316R2V Overview

Use the download button to access the FOD8316R2V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD83, or try a keyword search, such as MOSFET Drivers
