FOD8318V - onsemi

Description: Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); DIN EN/IEC 60747-5-5,1,414 V (peak) workinginsulation voltage, 8000 V (peak) transient isolationvoltage ratings; User configurable: inverting, non-inverting, auto-reset,auto-shutdown; 2.5 A peak output current driving capability for most 1200 V/150A IGBT; 35 kV / μs Minimum Common Mode Rejection (VCM = 1500 VPK); Wide supply voltage range from 15V to 30V; High Speed; Desaturation detection;

Download FOD8318V Model

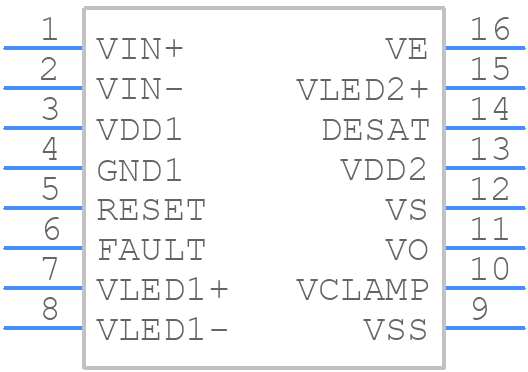

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD8318V - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - JEDEC MS-013 (SOIC-16)
click to zoom
3D Models
FOD8318V - onsemi  - 3D model - Small Outline Packages - JEDEC MS-013 (SOIC-16)
click to zoom

FOD8318V Details

  • Manufacturer Part Number:

    FOD8318V

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC16 W

  • Package Description:

    SOP-16

  • Manufacturer Package Code:

    751EN

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3 mm

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.5 µs

  • Turn-on Time:

    0.5 µs

  • Width:

    7.5 mm

FOD8318V Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD8318V involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, make sure the input voltage is within the recommended range of 3.3V to 5.5V.
  • The FOD8318V can handle a maximum current of 10mA per channel, making it suitable for low-power applications.
  • To troubleshoot issues with the FOD8318V, check the power supply voltage, ensure proper grounding, and verify the input signals. Use a logic analyzer or oscilloscope to debug the output signals and identify any issues.
  • The FOD8318V is rated for operation up to 85°C, making it suitable for most industrial and commercial applications. However, for high-temperature applications above 85°C, a different component may be required.
